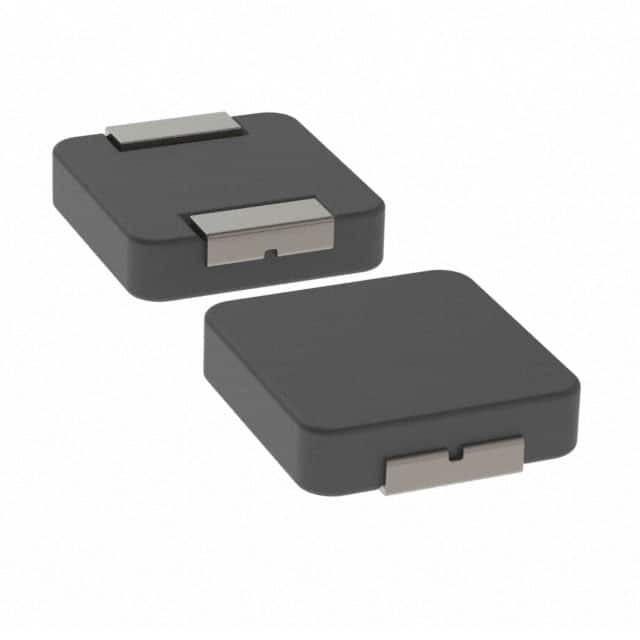

Same model may have multiple batches, images only for reference.

PA4546.331NLT

Name: PA4546.331NLT
Brand: Pulse
SKU: 1136014
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4546.331NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 330NH 7A 16 MOHM SMD / 330 nH Unshielded Molded Inductor 7 A 16mOhm Max Nonstandard
Datasheet	PA4546.331NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA4546.XXXNLT
Package	Tape & Reel
Type	Molded
Inductance	330 nH
Tolerance	±20%
Current Rating (Amps)	7 A
Current - Saturation (Isat)	11A
Shielding	Unshielded
DC Resistance (DCR)	16mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Max)	0.047" (1.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	553-4052-6,553-4052-2,553-4052-1
Standard Package	4,000
Win Source Part Number	1136014-PA4546.331NLT
Ultra Librarian 3D Model	Ultra Librarian PA4546.331NLT CAD Model

Alternative Products

Description

The Pulse Electronics Power 1136014-PA4546.331NLT is a molded type inductor with a nonstandard package/case.

Type: Molded
Case: Nonstandard
Inductance: 330 nH
Tolerance: ±20%
DC Resistance (DCR): 16mOhm Max
Current Rating: 7 A
Current Saturation (Isat): 11A
