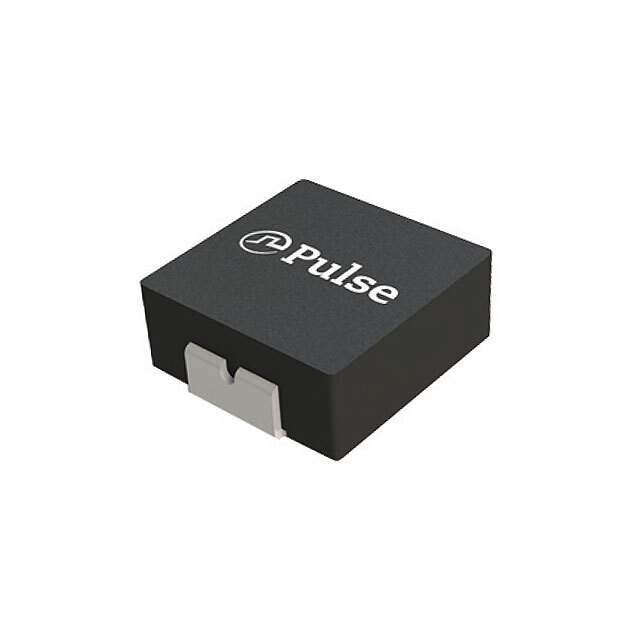

PA4341.682NLT Pulse Electronics
Same model may have multiple batches, images only for reference.

PA4341.682NLT

Part No PA4341.682NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 6.8UH 4.5A 60 MOHM SMD
Datasheet
PA4341.682NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1310325-PA4341.682NLT
Category Inductors, Coils, Chokes> Fixed Inductors
Mfr Pulse Electronics
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Type Molded
Inductance 6.8 µH
Tolerance ±20%
Current Rating (Amps) 4.5 A
Current - Saturation (Isat) 8A
Shielding Shielded
Ultra Librarian 3D Model Ultra Librarian PA4341.682NLT CAD Model

Description

  • Height: 3.0mm Max
  • Footprint: 7.6mm x 6.9mm Max
  • Current Rating: up to 32.5A
  • Inductance Range: 0.1uH to 47.0uH
  • Shielded construction and compact design
  • High current, low DCR, and high efficiency
  • Minimized acoustic noise and minimized leakage flux
  • 200Vdc Isolation between terminal and core
