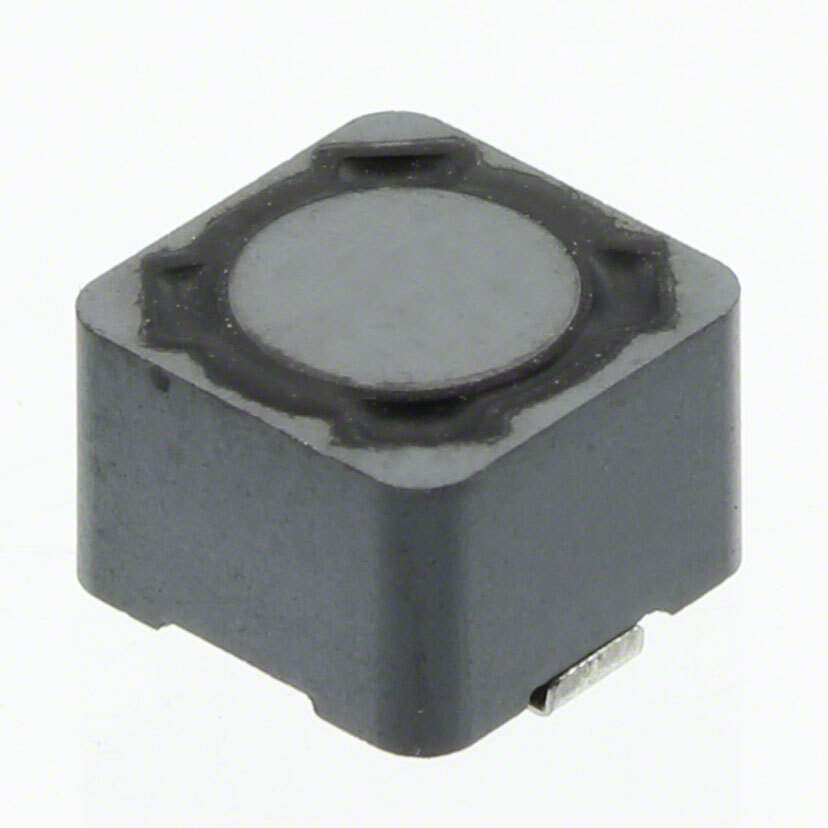

Same model may have multiple batches, images only for reference.

PA4302.224NLT

Name: PA4302.224NLT
Brand: Pulse
SKU: 1349304
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA4302.224NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 220UH 720MA 765MOHM SM / 220 µH Shielded Drum Core, Wirewound Inductor 720 mA 765mOhm Max Nonstandard
Datasheet	PA4302.224NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse Electronics
Series	PA4302.XXXNLT
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±20%
Current Rating (Amps)	720 mA
Shielding	Shielded
DC Resistance (DCR)	765mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.295" L x 0.295" W (7.50mm x 7.50mm)
Height - Seated (Max)	0.220" (5.60mm)
Standard Package	900
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	1349304-PA4302.224NLT
Ultra Librarian 3D Model	Ultra Librarian PA4302.224NLT CAD Model

Alternative Products

Description

The PA4302.XXXNLT series of drum core, wirewound inductors from Pulse Electronics is a high-quality solution for filtering out noise in electronic circuits.

Inductance: 220 µH
Maximum Current Rating: 720mA
Package: Surface Mount
Temperature Range: -40°C to 125°C
DC Resistance (DCR): 765mOhm
Shielding: Yes
