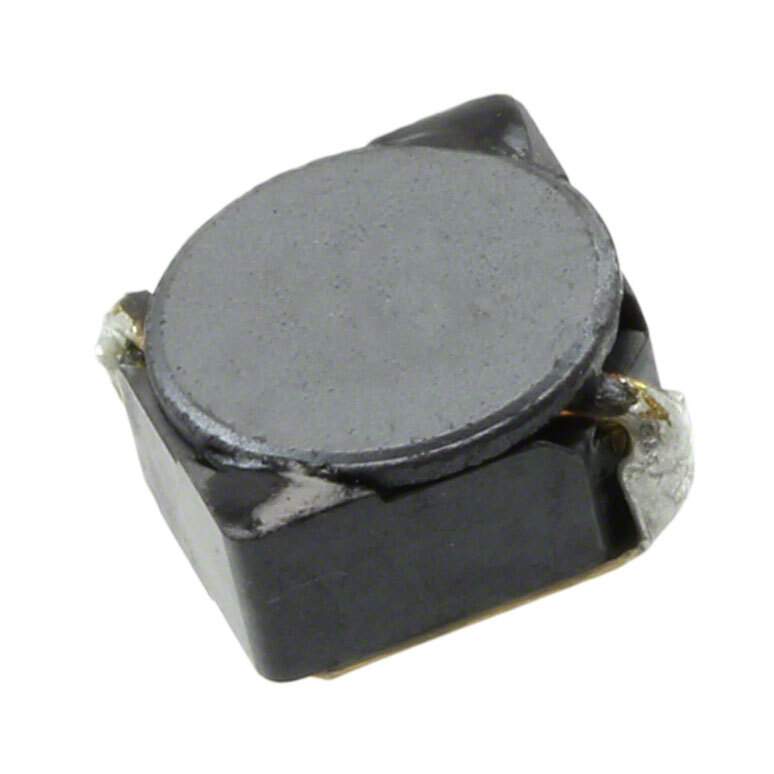

PA4300.224NLT Real Image
Same model may have multiple batches, images only for reference.

PA4300.224NLT

Part No PA4300.224NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 220UH 285MA 1.3OHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 285 mA 1.3Ohm Max Nonstandard
Datasheet
PA4300.224NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA4300.XXXNLT
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±20%
Current Rating (Amps) 285 mA
Shielding Shielded
DC Resistance (DCR) 1.3Ohm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.240" L x 0.240" W (6.10mm x 6.10mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-2420-1,553-2420-2,-PA4300.224NLT,553-2420-6
Standard Package 2,000
Win Source Part Number 1004710-PA4300.224NLT
Ultra Librarian 3D Model Ultra Librarian PA4300.224NLT CAD Model

Description

The PA4300.XXXNLT series drum core, wirewound inductor from Pulse Electronics Power is a shielded inductor with a 220 μH inductance.

  • Inductance: 220 μH
  • Shielding: Shielded
  • Maximum Seated Height: 0.118 inches (3.00mm)
  • DC Resistance (DCR): 1.3 Ohms max
  • Tolerance: ±20%
  • Operating Temperature: -40°C to 125°C
  • Mounting: SMD (SMT)
  • Packaging: Tape and reel
  • Core Material: Ferrite
  • RoHS: Compliant
  • REACH: Compliant
  • ECCN: EAR99
