Same model may have multiple batches, images only for reference.

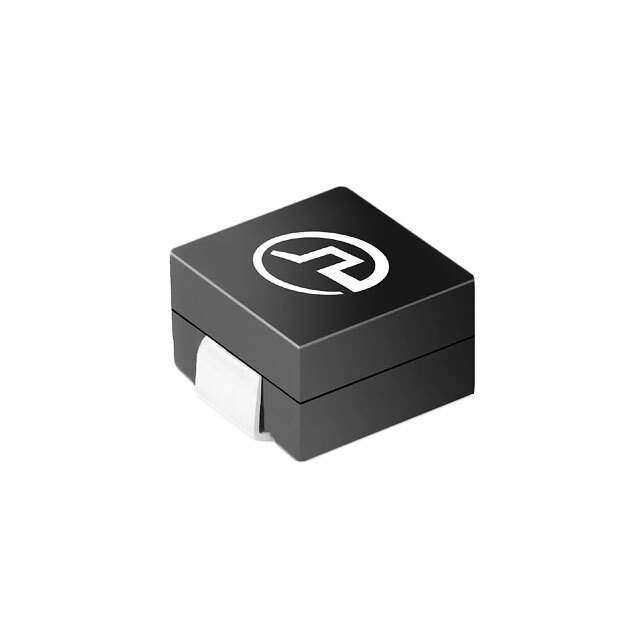

PA3784.151HLT Real Image
Same model may have multiple batches, images only for reference.

PA3784.151HLT

Part No PA3784.151HLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 150NH 67A 0.18MOHM SMD / 150 nH Unshielded Inductor 67 A 0.18mOhm Nonstandard
Datasheet
PA3784.151HLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series PA3784.XXXHL
Package Tape & Reel
Inductance 150 nH
Tolerance ±10%
Current Rating (Amps) 67 A
Current - Saturation (Isat) 83A
Shielding Unshielded
DC Resistance (DCR) 0.18mOhm
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.394" L x 0.315" W (10.00mm x 8.00mm)
Height - Seated (Max) 0.315" (8.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 553-PA3784.151HLTTR,553-PA3784.151HLTCT,553-PA3784.151HLTDKR,PA3784.151HLT-ND
Standard Package 450
Win Source Part Number 1083790-PA3784.151HLT
Ultra Librarian 3D Model Ultra Librarian PA3784.151HLT CAD Model

Description

The Pulse Electronics Power PA3784.XXXHL series fixed inductor from Pulse Electronics Power is an unshielded inductor with a 150 nH inductance.

  • Inductance: 150 nH
  • Maximum Seated Height: 0.315 inches (8.00mm)
  • DC Resistance (DCR): 0.18mOhm
  • Tolerance: ±10%
  • Operating Temperature: -40°C to 130°C
  • Mounting: SMD (SMT) technology
  • Packaging: tape and reel packaging
  • RoHS: compliant with RoHS
  • REACH: compliant with REACH regulations
  • ECCN: EAR99
