Same model may have multiple batches, images only for reference.

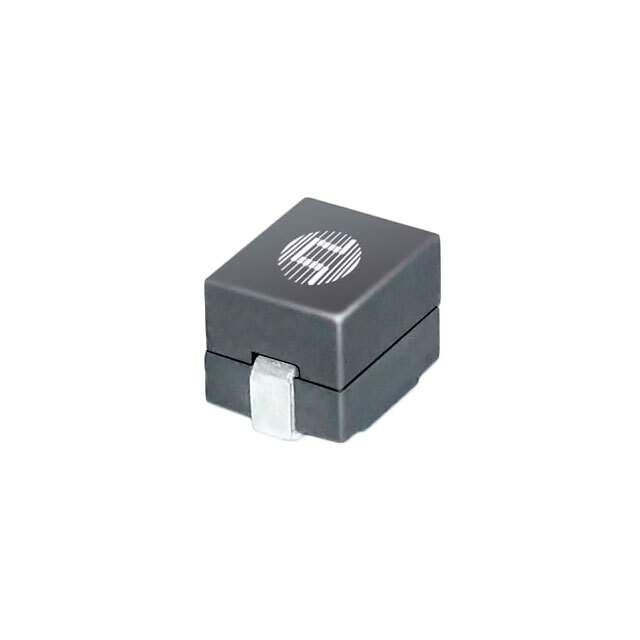

PA2983.650HLT Real Image
Same model may have multiple batches, images only for reference.

PA2983.650HLT

Part No PA2983.650HLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 65NH 30A 0.33 MOHM SMD
Datasheet
PA2983.650HLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Inductance 65nH
Tolerance ±15%
Current Rating 30A
Current - Saturation 29.5A
DC Resistance (DCR) 0.33 mOhm
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.157" (4.00mm)
Win Source Part Number 093424-PA2983.650HLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PA2983.650HLT CAD Model

Description

The inductor coil choke from Pulse Electronics Corporation is a top-quality component that is ideal for use in various inductor, coil, and choke applications.

  • Current Rating: 30A
  • Inductance: 65nH
  • Mounting Type: SMD (SMT)
  • Tolerance: ±15%
  • DC Resistance (DCR): 0.33 mOhm
  • Component Status: Active
  • Temperature Range: -40°C to 125°C
  • Supply and Demand Status: Limited
