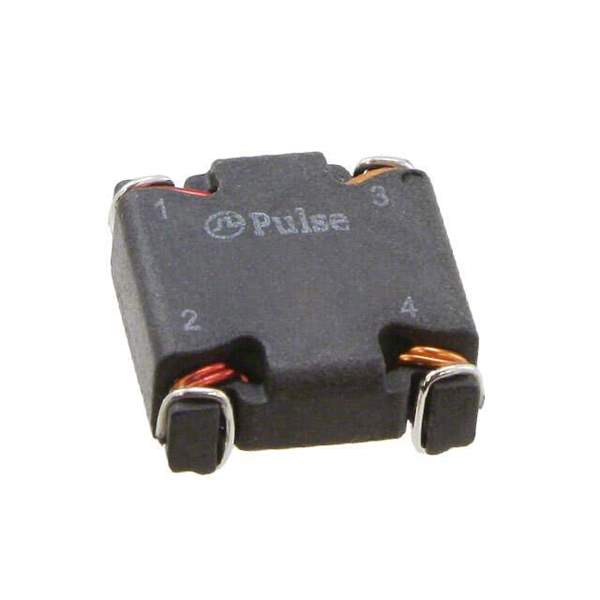

PA2745NL Real Image
Same model may have multiple batches, images only for reference.

PA2745NL

Part No PA2745NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 5A 2LN SMD / 2 Line Common Mode Choke Surface Mount 5A DCR 6.75mOhm
Datasheet
PA2745NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr Pulse Electronics Power
Package Tube
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 5A
DC Resistance (DCR) (Max) 6.75mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting SMD (SMT)
Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max) 0.220" (5.60mm)
Package / Case Horizontal, 4 PC Pad
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names PA2745NL-ND,553-2183
Standard Package 40
Win Source Part Number 1213233-PA2745NL
Ultra Librarian 3D Model Ultra Librarian PA2745NL CAD Model

Description

The PA2745NL common mode choke is a power line filter designed by Pulse Electronics Power.

  • Current Rating: 5A
  • Height: 5.60mm
  • Temperature Range: -40°C to 130°C
  • Packaging: Tube
  • Weight: 0.005 lbs
  • Dimension: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Designed for: Power transformers
  • Voltage Isolation: 2500Vrms
  • Mounting: Through-hole
