Same model may have multiple batches, images only for reference.

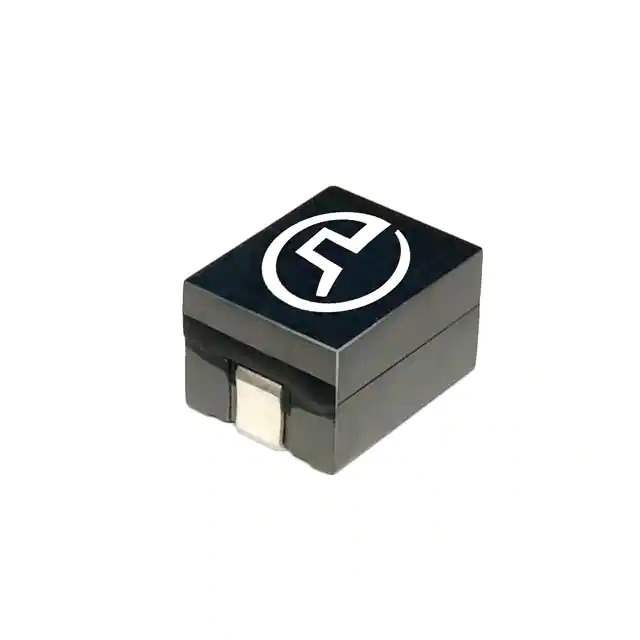

PA2202.361NLT Real Image
Same model may have multiple batches, images only for reference.

PA2202.361NLT

Part No PA2202.361NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 365NH 27A 0.48MOHM SMD
Datasheet
PA2202.361NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA2202.XXXNL
Package Tape & Reel
Product Status Active
Inductance 365 nH
Tolerance ±15%
Current Rating (Amps) 27 A
Current - Saturation (Isat) 30A
Shielding Unshielded
DC Resistance (DCR) 0.48mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.476" L x 0.394" W (12.10mm x 10.00mm)
Height - Seated (Max) 0.236" (6.00mm)
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 929944-PA2202.361NLT
Ultra Librarian 3D Model Ultra Librarian PA2202.361NLT CAD Model

Description

The 929944-PA2202.361NLT is a fixed inductor designed for use in inductors, coils, and chokes applications.

  • Category: Inductors, Coils, Chokes - Fixed Inductors
  • Series: PA2202.XXXNL
  • Shielding: Unshielded
  • Package: Tape & Reel
  • Size/Dimension: 0.476" L x 0.394" W (12.10mm x 10.00mm)
  • Inductance: 365nH
  • Height - Seated (Max): 0.236" (6.00mm)
  • Standard Package: 600 pieces
  • Tolerance: ±15%
  • DC Resistance (DCR): 0.48mOhm
  • Temperature Range: -40°C to 130°C
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • Current Rating: 27A
  • REACH Status: Unaffected
  • HTSUS Code: 8504.50.8000
  • Manufacturer: Pulse
