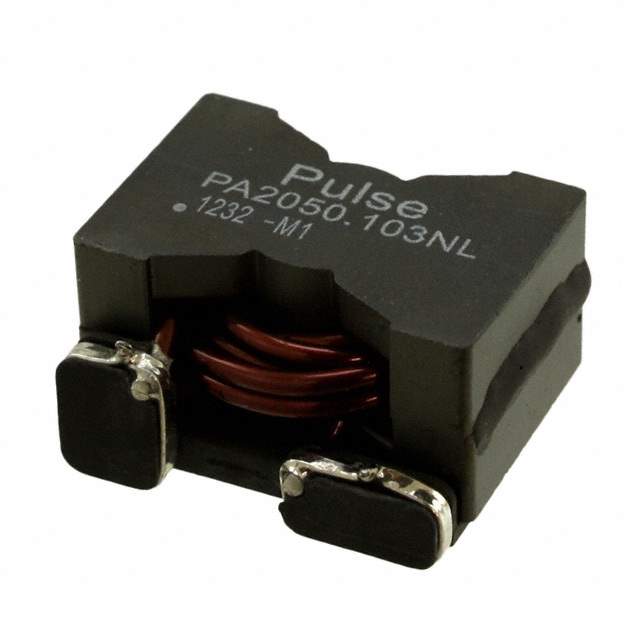

Same model may have multiple batches, images only for reference.

PA2050.103NL

Name: PA2050.103NL
Brand: Pulse
SKU: 969357
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA2050.103NL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 10.2UH 12.5A 5.8 MOHM / 10.2 µH Shielded Wirewound Inductor 12.5 A 5.8mOhm Nonstandard
Datasheet	PA2050.103NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse Electronics Power
Series	PA2050NL
Package	Tray
Type	Wirewound
Inductance	10.2 µH
Tolerance	±10%
Current Rating (Amps)	12.5 A
Current - Saturation (Isat)	16A
Shielding	Shielded
DC Resistance (DCR)	5.8mOhm
Temperature Range - Operating	-40°C ~ 130°C
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.875" L x 0.750" W (22.23mm x 19.05mm)
Height - Seated (Max)	0.480" (12.20mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	PA2050103NL,PA2050.103NL-ND,553-1874
Standard Package	70
Win Source Part Number	969357-PA2050.103NL
Ultra Librarian 3D Model	Ultra Librarian PA2050.103NL CAD Model

Alternative Products

Description

The Pulse Electronics Power PA2050.103NL inductor from Pulse Electronics Power is a wirewound type, with a shielded package and a standard package of 70.

Manufacturer: Pulse Electronics Power
Type: wirewound
Shielding: shielded
Standard Package: 70
Inductance: 10.2μH
Tolerance: ±10%
Dimension: 0.875" L x 0.750" W (22.23mm x 19.05mm)
Height: 0.480" (12.20mm)
DCR: 5.8mOhm
Current Rating: 12.5A
Temperature Range: -40°C to 130°C
ECCN: EAR99
Application: electronic devices that require fixed inductors
