Same model may have multiple batches, images only for reference.

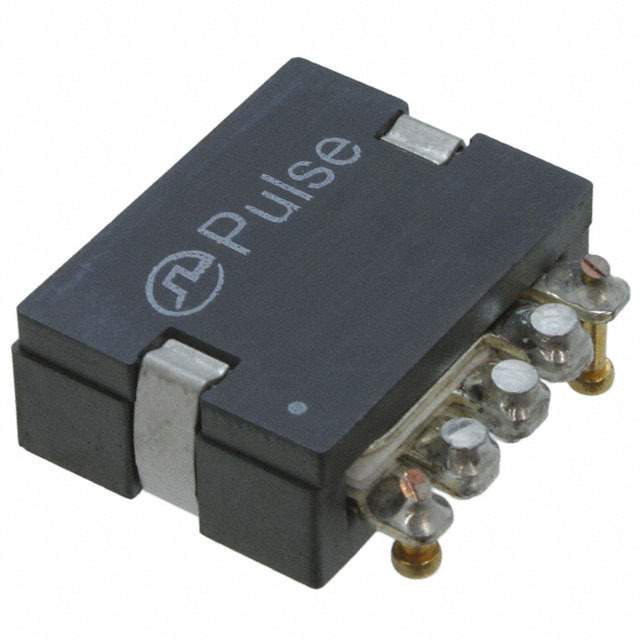

PA1393.102NLT Real Image
Same model may have multiple batches, images only for reference.

PA1393.102NLT

Part No PA1393.102NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1UH 42A 1.43 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Power
Packaging Tape and Reel
Type Planar
Inductance 1μH
Tolerance ±15%
Current Rating (Amps) 42A
Current - Saturation 68A
Shielding Shielded
DC Resistance (DCR) 1.43mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.780" L x 0.770" W (19.81mm x 19.56mm)
Height - Seated (Maximum) 0.290" (7.37mm)
Manufacturer Pack Quantity 250
MSL Level 1 (Unlimited)
Win Source Part Number 755511-PA1393.102NLT
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PA1393.102NLT CAD Model

Description

The Pulse Electronics Power 755511-PA1393.102NLT is a planar type shielded inductor with an inductance of 1μH and a tolerance of ±15%. It has a current saturation of 68A and a DC resistance of 1.43mOhm max. The operating temperature range is from -40°C to 130°C, and the package is nonstandard with a height of 0.290" (7.37mm).

  • Applications: Suitable for use in applications such as inductors, coils, and chokes.
  • Supply and Demand Status: Balanced
  • Manufacturer Pack Quantity: 250
  • MSL Level: 1 (Unlimited)
  • Parts Dimension: 0.780" L x 0.770" W (19.81mm x 19.56mm)
  • Current Rating: 42A
