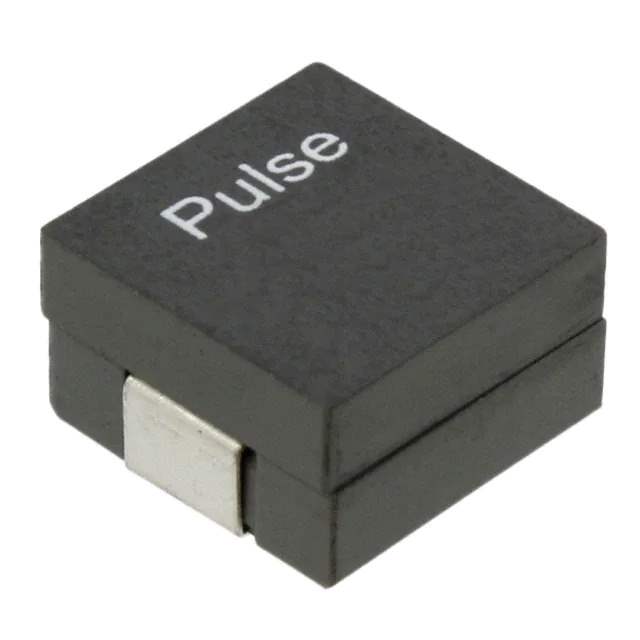

PA0513.211NLT Real Image
Same model may have multiple batches, images only for reference.

PA0513.211NLT

Part No PA0513.211NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 210NH 45A 0.32MOHM SMD / 210 nH Shielded Inductor 45 A 0.32mOhm Nonstandard
Datasheet
PA0513.211NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse
Series PA0513NL
Package Tape & Reel
Product Status Active
Inductance 210 nH
Tolerance ±20%
Current Rating (Amps) 45 A
Current - Saturation (Isat) 71A
Shielding Shielded
DC Resistance (DCR) 0.32mOhm
Temperature Range - Operating -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.530" L x 0.510" W (13.46mm x 12.95mm)
Height - Seated (Max) 0.315" (8.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 929933-PA0513.211NLT
Ultra Librarian 3D Model Ultra Librarian PA0513.211NLT CAD Model

Description

The 929933-PA0513.211NLT is a fixed inductor from Pulse.

  • Series: PA0513NL
  • Size: 0.530" L x 0.510" W (13.46mm x 12.95mm)
  • Shielded: Yes
  • Inductance: 210 nH
  • Tolerance: ±20%
  • DC Resistance (DCR): 0.32mOhm
  • Current Rating: 45 A
  • Operating Temperature Range: -40°C to 130°C
  • Mounting: Surface Mount
  • Package: Nonstandard
