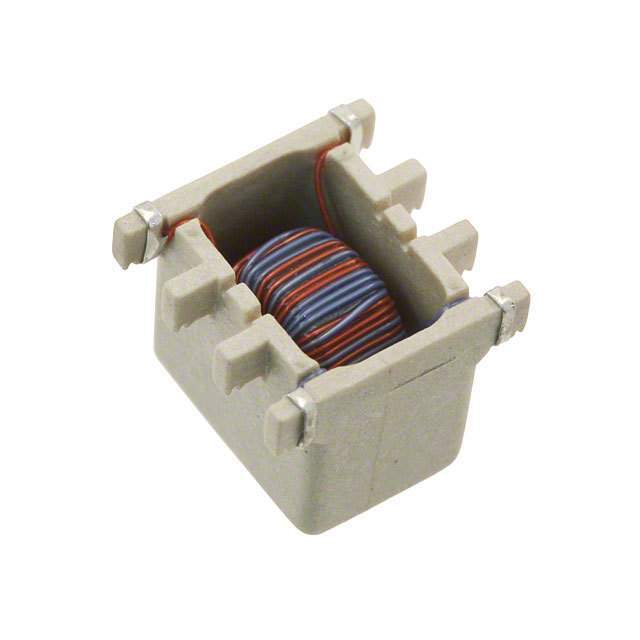

PA0184NLT Pulse
Same model may have multiple batches, images only for reference.

PA0184NLT

Part No PA0184NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1:1 1.2MH
Datasheet
PA0184NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Inductance 1.2mH
ET (Volt-Time) 27.2VµS
Mounting Type Surface Mount
Size / Dimension 0.355" L x 0.340" W (9.02mm x 8.64mm)
Height - Seated (Max) 0.300" (7.62mm)
Temperature Range - Operating -40°C ~ 130°C
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 267323-PA0184NLT
Ultra Librarian 3D Model Ultra Librarian PA0184NLT CAD Model

Description

The 267323-PA0184NLT is a pulse transformer suitable for various electronic applications.

  • Size: 0.355" L x 0.340" W (9.02mm x 8.64mm)
  • Height: 0.300" (7.62mm)
  • Inductance: 1.2mH
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 130°C
  • Status: Active
  • Manufacturer: Pulse
  • Package: Tape & Reel
  • Standard Package: 400 pcs
  • ECCN: EAR99
  • REACH: Unaffected
  • ET (Volt-Time): 27.2VμS
  • HTSUS Code: 8504.31.2000
