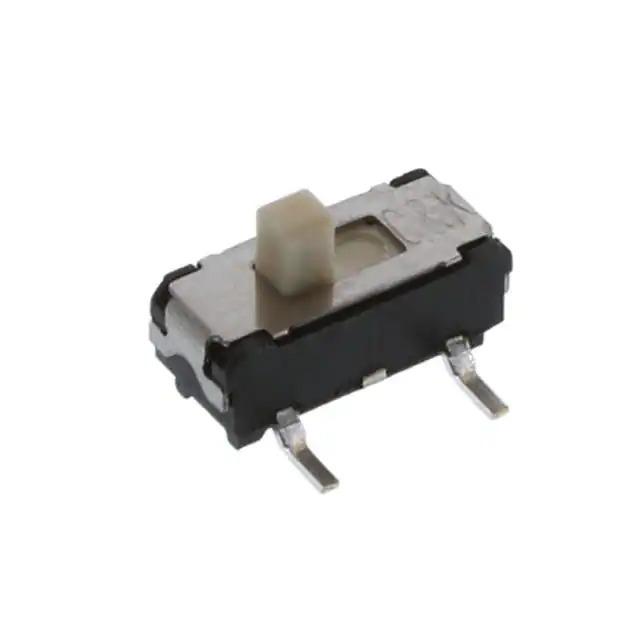

JS102011SCQN C&K Components
Same model may have multiple batches, images only for reference.

JS102011SCQN

Part No JS102011SCQN
Manufacturer C&K Components
Catalog Slide Switches
Description SWITCH SLIDE SPDT 300MA 6V
Datasheet
JS102011SCQN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Slide Switches
Mfr C&K
Series JS
Package Tape & Reel
Product Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-On
Current Rating (Amps) 300mA (DC)
Voltage Rating - DC 6 V
Actuator Type Standard
Actuator Length 2.00mm
Contact Material Copper Alloy
Contact Finish Silver
Mounting Type Surface Mount
Termination Style Gull Wing
Features -
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA46), Nylon 4/6
Switch Travel 2.00mm
Mechanical Life -
Electrical Life 5,000 Cycles
Operating Force -
Base Product Number JS102011
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9050
Win Source Part Number 1376228-JS102011SCQN
Ultra Librarian 3D Model Ultra Librarian JS102011SCQN CAD Model

Description

The JS102011SCQN is a slide switch from C&K's JS series.

  • Mounting Type: Surface Mount
  • Current Rating: 300mA (DC)
  • Voltage Rating: 6V
  • Circuit: SPDT
  • Switch Function: on-on
  • Contact Finish: Silver
  • Contact Material: Copper Alloy
  • Actuator Type: Standard
  • Termination Style: Gull Wing
  • Switch Travel: 2.00mm
  • Actuator Length: 2.00mm
  • Mechanical Life: 5,000 cycles
