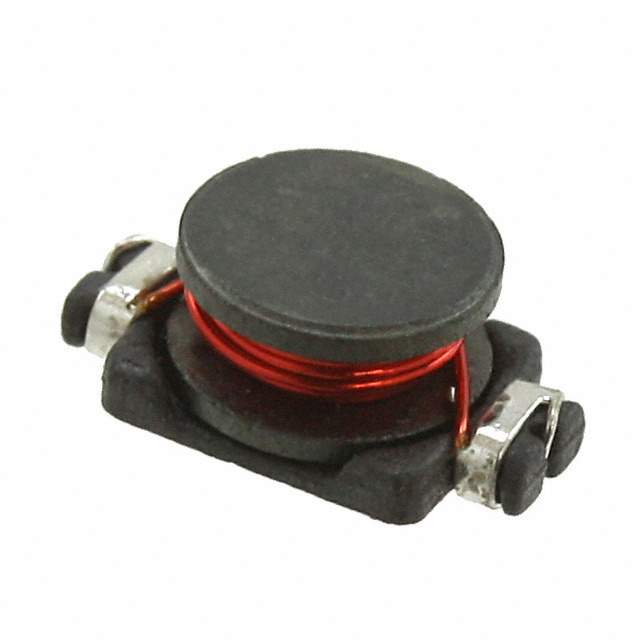

P0770.102NLT Real Image
Same model may have multiple batches, images only for reference.

P0770.102NLT

Part No P0770.102NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1UH 2.9A 50 MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Power
Packaging Reel
Type Wirewound
Inductance 1μH
Tolerance ±20%
Current Rating (Amps) 2.9A
Current - Saturation 2.9A
Shielding Unshielded
DC Resistance (DCR) 50mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Maximum) 0.115" (2.92mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 725838-P0770.102NLT
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P0770.102NLT CAD Model

Description

The P0770.102NLT is a wirewound electronic component manufactured by Pulse Electronics Power.

  • Shielded: Yes
  • Inductance: 1μH
  • Tolerance: ±20%
  • Current Saturation: 2.9A
  • DC Resistance: 50mOhm Max
  • Intended Use: Inductors, coils, and chokes
  • Supply and Demand Status: Balanced
  • Manufacturer Package: Nonstandard
  • Height-Seated Maximum: 0.115 inches (2.92mm)
  • Parts Dimension: 0.260 inches L x 0.175 inches W (6.60mm x 4.45mm)
  • Inductance Frequency Test: 100kHz
