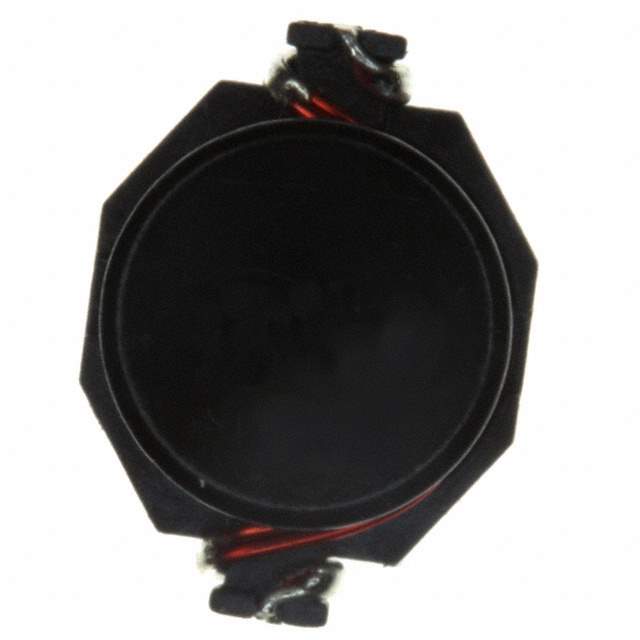

P0751.102NLT Real Image
Same model may have multiple batches, images only for reference.

P0751.102NLT

Part No P0751.102NLT
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1UH 6.8A 10 MOHM SMD / 1 µH Unshielded Wirewound Inductor 6.8 A 10mOhm Max Nonstandard
Datasheet
P0751.102NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Pulse Electronics Power
Series P0751NL
Package Tape & Reel
Type Wirewound
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 6.8 A
Current - Saturation (Isat) 9A
Shielding Unshielded
DC Resistance (DCR) 10mOhm Max
Temperature Range - Operating -40°C ~ 130°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.510" L x 0.370" W (12.95mm x 9.40mm)
Height - Seated (Max) 0.215" (5.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Other Names 553-1055-2,P0751.102TNL,553-1055-1,P0751102NLT,553-1055-6
Standard Package 800
Win Source Part Number 1001244-P0751.102NLT
Ultra Librarian 3D Model Ultra Librarian P0751.102NLT CAD Model

Description

The P0751.102NLT from Pulse Electronics Power is a high-quality inductor used for various electronic applications. With a current rating of 6.8A and a maximum operating temperature of 130°C, this inductor is suitable for use in extreme environments.

  • Current Rating: 6.8A
  • Maximum Operating Temperature: 130°C
  • Tolerance: ±20%
  • DC Resistance: 10mOhm Max
