Same model may have multiple batches, images only for reference.

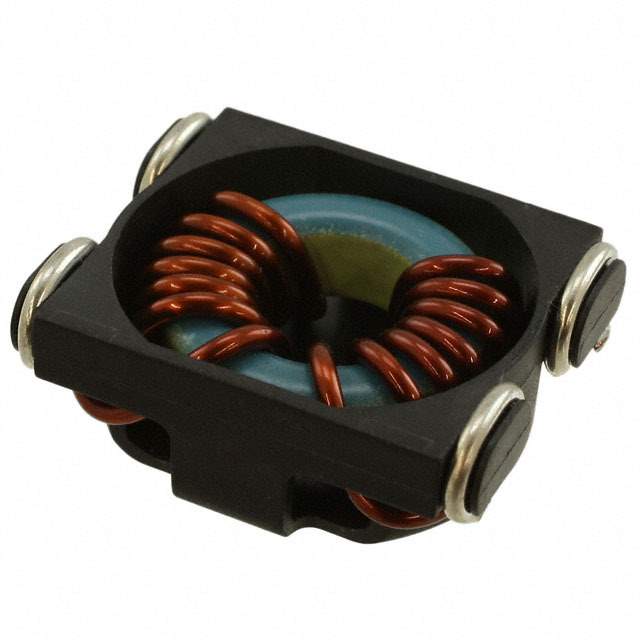

P0597NLT Real Image
Same model may have multiple batches, images only for reference.

P0597NLT

Part No P0597NLT
Manufacturer Pulse
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 5.7UH SMD
Datasheet
P0597NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 22.8μH
Inductance - Connected In Parallel 5.7μH
Tolerance ±15%
Current Rating - Parallel 27A
Current Rating - Series 13.5A
DC Resistance (DCR) - Parallel 2.5 mOhm Max
DC Resistance (DCR) - Series 10.1 mOhm Max
Temperature Range - Operating -40°C to 130°C
Mounting SMD (SMT)
Height 0.500" (12.70mm)
Win Source Part Number 126669-P0597NLT
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian P0597NLT CAD Model

Description

The Pulse Electronics Corporation P0597NLT is an electronic component that is designed for use in various applications.

  • Height: 0.500 inches
  • Coils: Two
  • Current Rating (Parallel): 27A
  • Current Rating (Series): 13.5A
  • Win Source Part Number: 126669-P0597NLT
