Same model may have multiple batches, images only for reference.

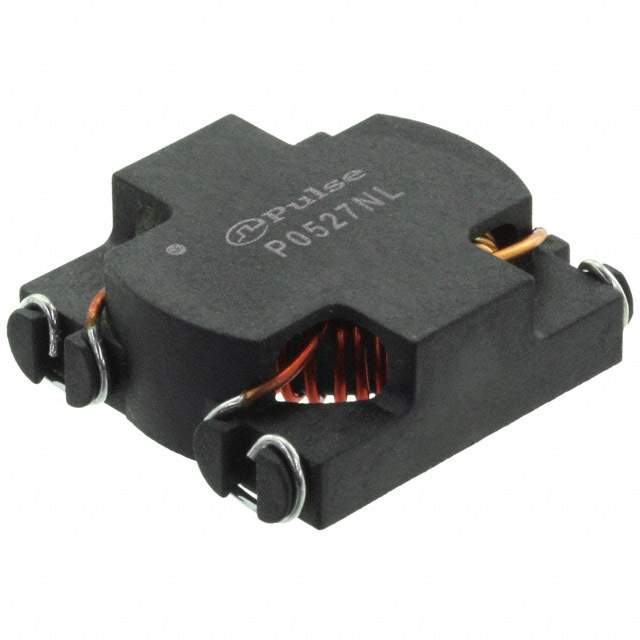

P0527NL Real Image
Same model may have multiple batches, images only for reference.

P0527NL

Part No P0527NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 7.2A 2LN SMD
Datasheet
P0527NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 7.2A
DC Resistance (DCR) (Max) 15 mOhm
Temperature Range - Operating -40°C to 120°C
Mounting SMD (SMT)
Height (Max) 0.395" (10.04mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 086931-P0527NL
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P0527NL CAD Model

Description

The 086931-P0527NL from Pulse Electronics Corporation is a power line filter that comes in reel - TR packaging.

  • Mounting Type: SMD (SMT)
  • Maximum Height: 0.395" (10.04mm)
  • Lines: 2
  • Current Rating: 7.2A
  • Maximum DC Resistance (DCR): 15 mOhm
  • Category: Filters
  • Temperature Range: -40°C to 120°C
