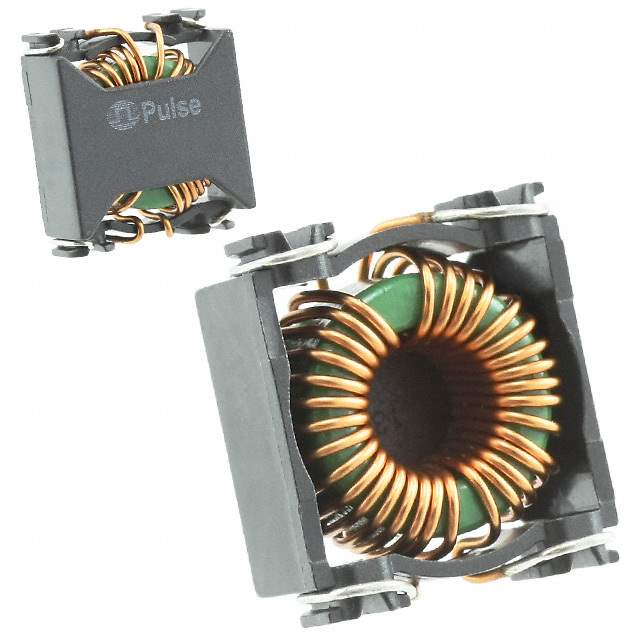

P0422NLT Real Image
Same model may have multiple batches, images only for reference.

P0422NLT

Part No P0422NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 4.7A 2LN SMD
Datasheet
P0422NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 4.7A
DC Resistance (DCR) (Max) 40 mOhm
Temperature Range - Operating -40°C to 120°C
Mounting SMD (SMT)
Height (Max) 0.390" (9.91mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 026212-P0422NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian P0422NLT CAD Model

Description

The 026212-P0422NLT filter manufactured by Pulse Electronics Corporation is a power line filter.

  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Height (Max): 0.390" (9.91mm)
  • Lines: 2
  • Category: Filters
  • Temperature Range: -40°C to 120°C
