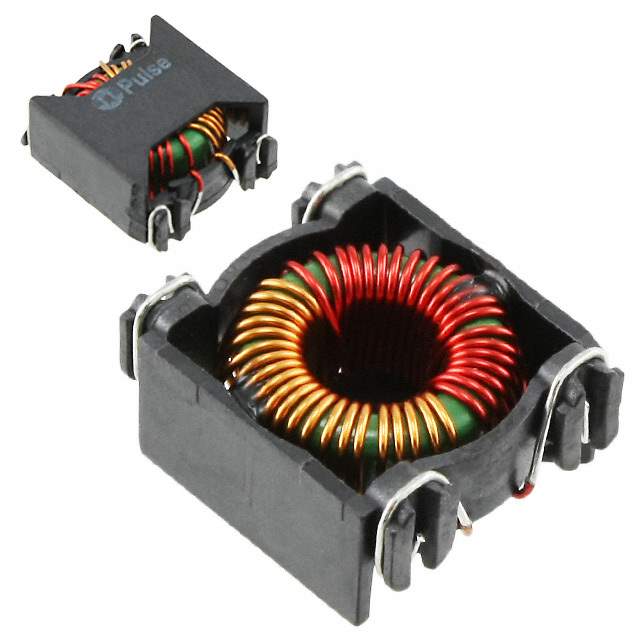

P0420NLT Real Image
Same model may have multiple batches, images only for reference.

P0420NLT

Part No P0420NLT
Manufacturer Pulse
Catalog Common Mode Chokes
Description COMMON MODE CHOKE 3.3A 2LN SMD
Datasheet
P0420NLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Reel - TR
Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3.3A
DC Resistance (DCR) (Max) 60 mOhm
Temperature Range - Operating -40°C to 120°C
Mounting SMD (SMT)
Height (Max) 0.390" (9.91mm)
Dimension Horizontal, 4 PC Pad
Win Source Part Number 026211-P0420NLT
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian P0420NLT CAD Model

Description

The 026211-P0420NLT is a power line filter that belongs to the Filters category.

  • Maximum DC Resistance (DCR): 60 mOhm
  • Current Rating: 3.3A
  • Height (Max): 0.390" (9.91mm)
  • Mounting: SMD (SMT)
  • Dimension: Horizontal, 4 PC Pad
  • Lines: Two
  • Packaging: Reel - TR
  • Manufacturer: Pulse Electronics Corporation
