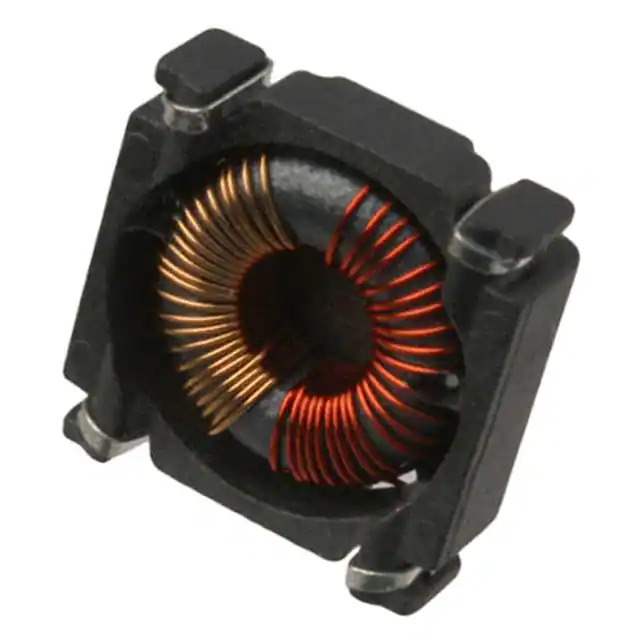

P0354NLT Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Pulse
Package Tape & Reel
Product Status Active
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 1.22A
DC Resistance (DCR) (Max) 200mOhm
Temperature Range - Operating -40°C ~ 120°C
Mounting Type Surface Mount
Size / Dimension 0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max) 0.215" (5.46mm)
Package / Case Horizontal, 4 PC Pad
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 651415-P0354NLT
Ultra Librarian 3D Model Ultra Librarian P0354NLT CAD Model

Description

The 651415-P0354NLT is a common mode choke filter designed for power line applications.

  • Mounting: surface mount
  • Package Size: 0.500" L x 0.500" W (12.70mm x 12.70mm)
  • Maximum Current Rating: 1.22A
  • DC Resistance (DCR): 200mOhm
  • Operating Temperature: -40°C to 120°C
  • Manufacturer: Pulse
  • Status: active
  • Package: 500 pcs
  • Packaging: tape & reel
