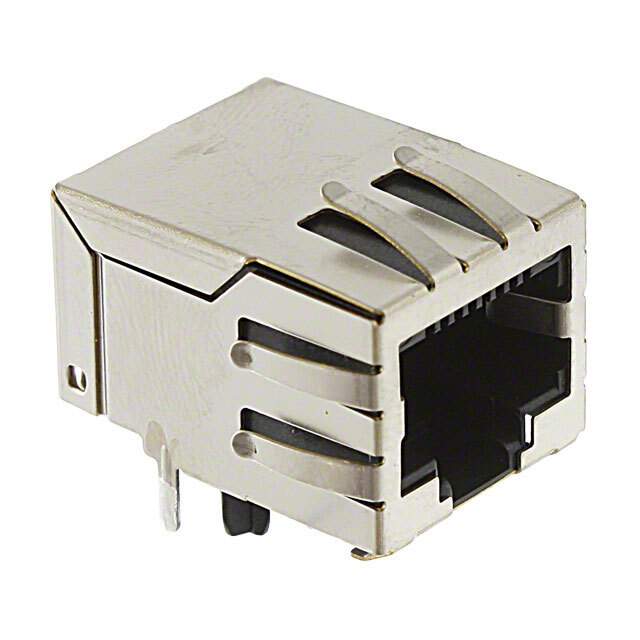

JXR0-0005NL Real Image
Same model may have multiple batches, images only for reference.

JXR0-0005NL

Part No JXR0-0005NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
JXR0-0005NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Pulse Electronics Network
Series PULSEJACK™ JXR0
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8536.69.4040
Other Names JXR00005NL,553-2047
Standard Package 30
Win Source Part Number 1066463-JXR0-0005NL
Ultra Librarian 3D Model Ultra Librarian JXR0-0005NL CAD Model

Description

The PULSEJACK™ JXR0 1066463-JXR0-0005NL is a shielded RJ45 connector with an integrated magnetic from Pulse.

  • Series: JXR0
  • Connector Type: RJ45
  • Shielded: Yes
  • Magnetic: Integrated
  • Features: Board Guide, AutoMDIX
  • Application: 10/100 Base-TX Ethernet
  • Orientation: 90-degree angle
  • Tab Direction: Down
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold
  • Alternative Parts: 43860-0005, 43202-8927, J0026D21BNL, J00-0045NL, J1011F01PNL, and RJHSE5381
  • Packaging: Tray
  • Standard Package: 30
