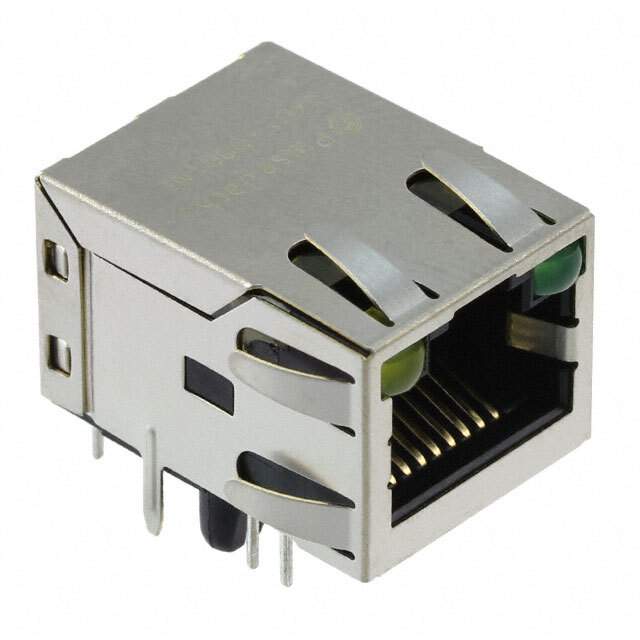

JXD1-0001NL Real Image
Same model may have multiple batches, images only for reference.

JXD1-0001NL

Part No JXD1-0001NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet
JXD1-0001NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors - Jacks With Magnetics
Mfr Pulse Electronics Network
Series PULSEJACK™ JXD1
Package Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.543" (13.80mm)
LED Color Yellow - Green
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Other Names -JXD1-0001NL,553-3266,JXD1-0001NL-ND
Standard Package 50
Win Source Part Number 1066461-JXD1-0001NL
Ultra Librarian 3D Model Ultra Librarian JXD1-0001NL CAD Model

Description

The Pulse Electronics Network 1066461-JXD1-0001NL is a modular connector that is widely used in various applications.

  • Category: Connectors, Interconnects
  • Series: PULSEJACK™ JXD1
  • Orientation: 90-degree angle (right)
  • Shielded: EMI Finger
  • Supply and Demand Status: Unlimited
