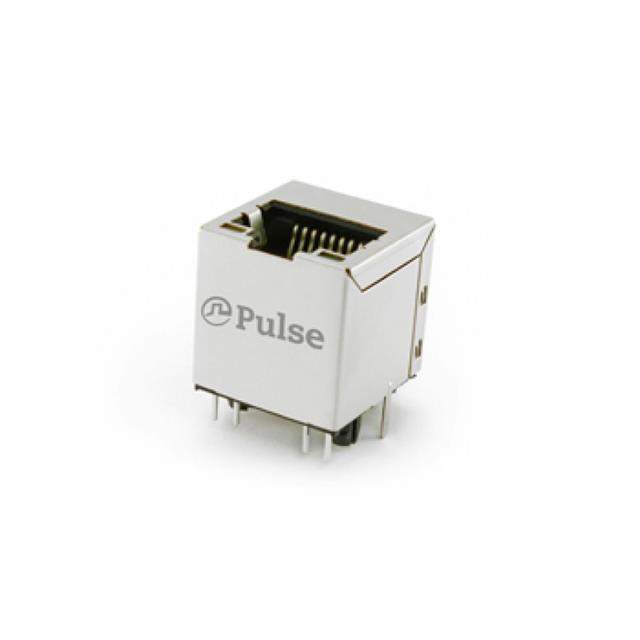

JX3V-9015NLT Real Image
Same model may have multiple batches, images only for reference.

JX3V-9015NLT

Part No JX3V-9015NLT
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK RJ45 1GIG Y/G LED / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Modular Connectors - Modular Connector Jacks With Magnetics
Mfr Pulse Electronics
Series PULSEJACK™ JX3V
Package Tape & Reel (TR) Cut Tape (CT)
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation Vertical
Termination Solder
Height Above Board 0.689" (17.50mm)
LED Color Yellow - Green
Number of Cores per Jack 8
Shielding Shielded
Features Board Lock
Tab Direction User Selectable
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating -40°C ~ 85°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
Standard Package 70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1349176-JX3V-9015NLT
Ultra Librarian 3D Model Ultra Librarian JX3V-9015NLT CAD Model

Description

The Pulse Electronics PULSEJACK™ JX3V 1349176-JX3V-9015NLT modular connector jack is a high-performance RJ45 connector designed for use in 10/100/1000 Base-T and AutoMDIX applications.

  • Orientation: Vertical
  • Port: Single
  • Mounting Style: Through-hole
  • Shielded: Yes
  • Board Lock: Yes
  • Housing Material: Thermoplastic
  • Contact Material: Phosphor bronze
  • Contact Finish: Gold
  • RoHS Compliant: Yes
  • Operating Temperature: -40°C to 85°C
