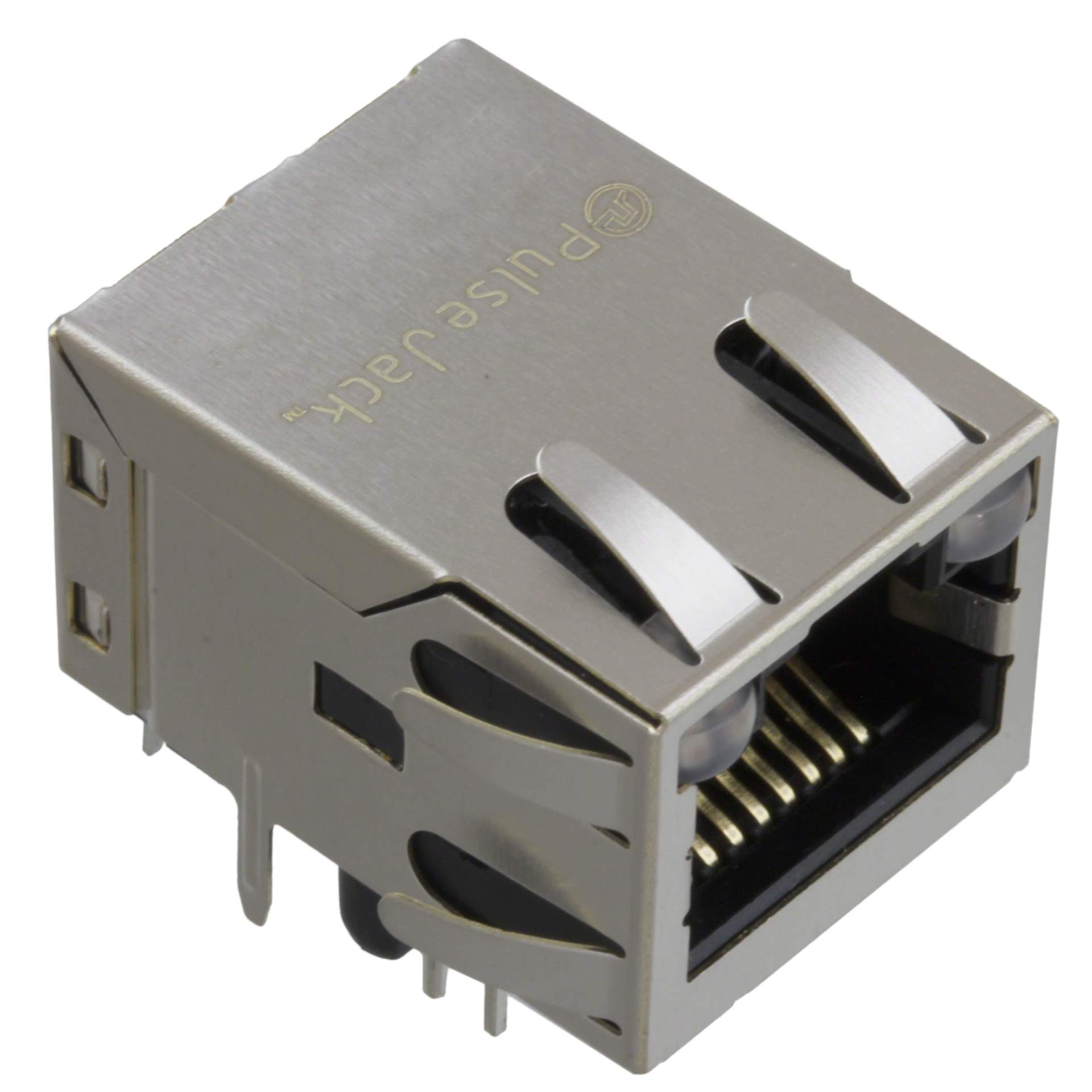

JD1-0002NL

Name: JD1-0002NL
Brand: Pulse
SKU: 1333872
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	JD1-0002NL
Manufacturer	Pulse
Catalog	Modular Connectors
Description	CONN JACK 1PORT 1000 BASE-T PCB / 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Datasheet	JD1-0002NL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer	Pulse Electronics
Packaging	Tray
Connector Type	RJ45
Number of Ports	1
Number of Rows	1
Applications	10/100/1000 Base-T, AutoMDIX
Mounting	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Height Above Board	0.543" (13.80mm)
LED Color	Green, Yellow - Green, Yellow
Number of Cores per Jack	8
Shielding	Shielded, EMI Finger
Features	Board Lock
Tab Direction	Up
Contact Material	Phosphor Bronze
Contact Finish	Gold
Temperature Range - Operating	0°C ~ 70°C
Contact Finish Thickness	6.00µin (0.152µm)
Shield Material	Brass
Housing Material	Thermoplastic
RoHS Status	RoHS Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	553-2362
Standard Package	50
Win Source Part Number	1333872-JD1-0002NL
Ultra Librarian 3D Model	Ultra Librarian JD1-0002NL CAD Model

Alternative Products

Description

The Pulse Electronics 1333872-JD1-0002NL is a shielded modular connector jack with magnetics designed for 10/100/1000 Base-T and AutoMDIX applications.

Feature: Board lock
Orientation: Right angle
Mounting: Through-hole
Connector Type: RJ45
Row: Single
Termination: Solder
Contact Finish: Gold
Contact Finish Thickness: 6.00µin (0.152µm)
Contact Material: Phosphor bronze
Height Above Board: 0.543" (13.80mm)
Shielding: EMI finger
Housing Material: Thermoplastic
Standard Package: 50
LED Color: Green and yellow
Number of Cores per Jack: 8
Tab Direction: Up
Shield Material: Brass
Temperature Range: 0°C ~ 70°C
RoHS Compliant: Yes
