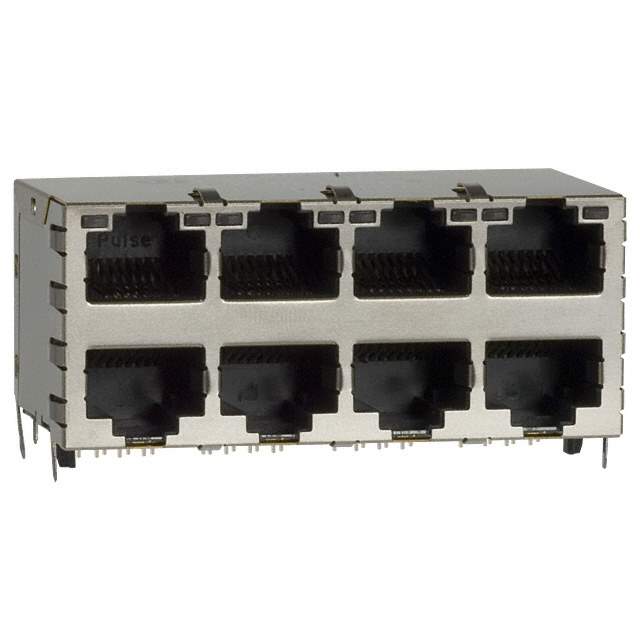

J20-0014NL Real Image
Same model may have multiple batches, images only for reference.

J20-0014NL

Part No J20-0014NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 8PORT 100 BASE-TX PCB / 8 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
J20-0014NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tray
Connector Type RJ45
Number of Ports 8
Number of Rows 2
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 1.005" (25.53mm)
LED Color Green, Yellow - Green, Yellow
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up and Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 30.0µin (0.76µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 553-1464,J200014NL
Standard Package 10
Win Source Part Number 1333887-J20-0014NL
Ultra Librarian 3D Model Ultra Librarian J20-0014NL CAD Model

Description

The Pulse Electronics J20-0014NL is a modular connector jack with magnetics designed for 10/100 Base-TX and AutoMDIX applications.

  • Shielding: Shielded, EMI finger
  • Orientation: 90-degree angle
  • Mounting: Through-hole
  • Ports: 8
  • Height above Board: 1.005 inches
  • RoHS compliant: Yes
  • Package: Tray
