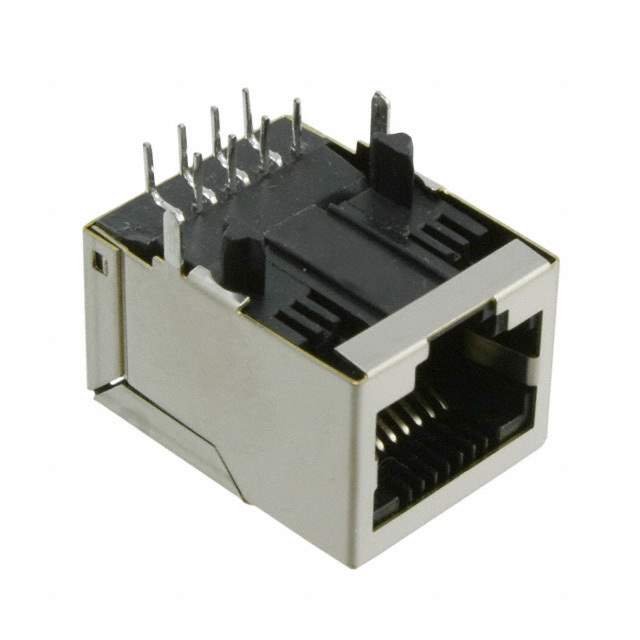

J00-0014NL Real Image
Same model may have multiple batches, images only for reference.

J00-0014NL

Part No J00-0014NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
J00-0014NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Tube
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.545" (13.84mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded
Features Board Guide
Tab Direction Down
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number J000014NL,553-1612-5,J00-0014NL-ND
Standard Package 30
Win Source Part Number 1333896-J00-0014NL
Ultra Librarian 3D Model Ultra Librarian J00-0014NL CAD Model

Description

This is a modular connector jack with magnetics that is designed for use in electronic circuits.

  • Packaging: Tube
  • Feature: Board guide
  • Connector Type: RJ45
  • Row: One
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 15.0µin (0.38µm)
  • Contact Material: Phosphor bronze
  • Height Above Board: 0.545" (13.84mm)
  • Shielded: Yes
  • Housing Material: Thermoplastic
  • Applications: 10/100 Base-TX, AutoMDIX
  • Orientation: 90° angle (right)
  • Port: One
  • Standard Package: 30
  • Mounting: Through hole
  • LED Color: No LED
  • Number of Cores per Jack: 4
  • Tab Direction: Down
  • Shield Material: Brass
  • Temperature Range: 0°C ~ 70°C
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.69.4040
  • Other Part Number: J000014NL,553-1612-5,J00-0014NL-ND
  • RoHS Status: RoHS Compliant
