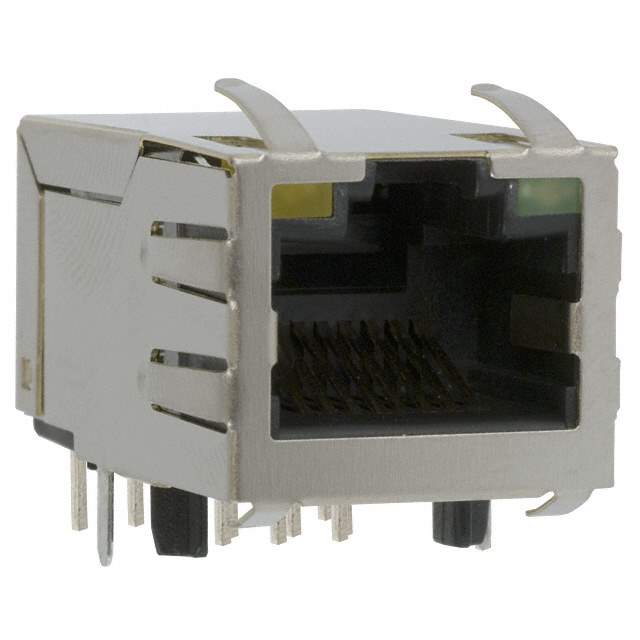

J1012F21CNL Real Image
Same model may have multiple batches, images only for reference.

J1012F21CNL

Part No J1012F21CNL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN MAGJACK 1PORT 100 BASE-TX / 1x1 Tab-UP RJ45
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Pulse Electronics Network
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Style Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Yellow - Green
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0μin (0.38μm)
Shield Material Brass
Housing Material Thermoplastic
Manufacturer Pack Quantity 25
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811418-J1012F21CNL
Ultra Librarian 3D Model Ultra Librarian J1012F21CNL CAD Model

Description

The Pulse Electronics Network 811418-J1012F21CNL is a through-hole RJ45 connector with board guide feature.

  • Termination: Solder
  • Contact Finish: Gold, 15.0μin (0.38μm) thickness
  • Shielding: Shielded with EMI finger
  • Housing Material: Thermoplastic
  • Applications: 10/100 Base-TX, AutoMDIX
  • Temperature Range: 0°C ~ 70°C
  • Orientation: 90° Angle (Right)
  • LED Color: Yellow-Green
  • Cores per Jack: 4
  • Height Above Board: 0.550" (13.97mm)
  • Shield Material: Brass
