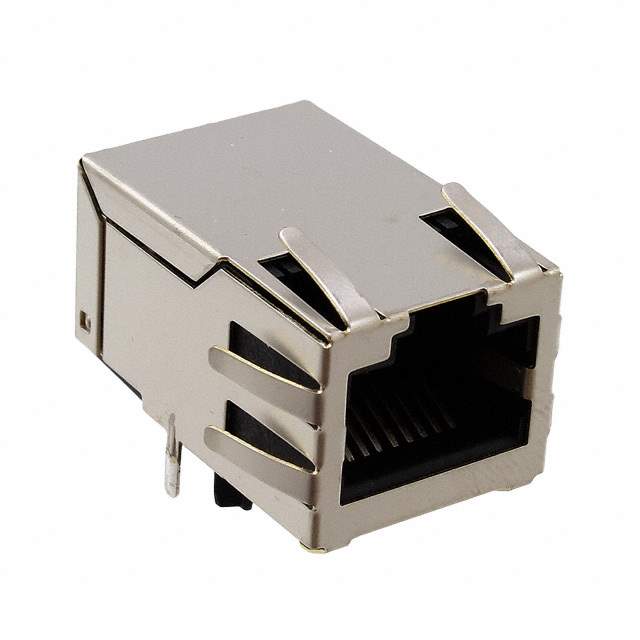

J1006F21NL Real Image
Same model may have multiple batches, images only for reference.

J1006F21NL

Part No J1006F21NL
Manufacturer Pulse
Catalog Modular Connectors
Description CONN JACK 1PORT 100 BASE-TX PCB / 1 Port RJ45Through Hole 10/100 Base-TX, AutoMDIX
Datasheet
J1006F21NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Modular Connectors>Modular Connector Jacks With Magnetics
Manufacturer Pulse Electronics
Packaging Bulk
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100 Base-TX, AutoMDIX
Mounting Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.550" (13.97mm)
LED Color Does Not Contain LED
Number of Cores per Jack 4
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Gold
Temperature Range - Operating 0°C ~ 70°C
Contact Finish Thickness 15.0µin (0.38µm)
Shield Material Brass
Housing Material Thermoplastic
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number J1006F21NL-ND,553-2103
Standard Package 25
Win Source Part Number 1333939-J1006F21NL
Ultra Librarian 3D Model Ultra Librarian J1006F21NL CAD Model

Description

The Pulse Electronics 1333939-J1006F21NL is a shielded modular connector jack with magnetics designed for 10/100 Base-TX and AutoMDIX applications.

  • Features: Board Guide
  • Orientation: Right Angle
  • Mounting: Through-Hole
  • Connector Type: RJ45
  • Row: Single
  • Termination: Solder
  • Contact Finish: Gold with a thickness of 15.0µin (0.38µm)
  • Contact Material: Phosphor Bronze
  • Height Above Board: 0.550" (13.97mm)
  • Shielding: EMI Finger
  • Housing Material: Thermoplastic
  • Package: 25
  • LED: No LED
  • Cores per Jack: 4
  • Tab Direction: Up
  • Shield Material: Brass
  • Temperature Range: 0°C ~ 70°C
  • RoHS Compliant: Yes
