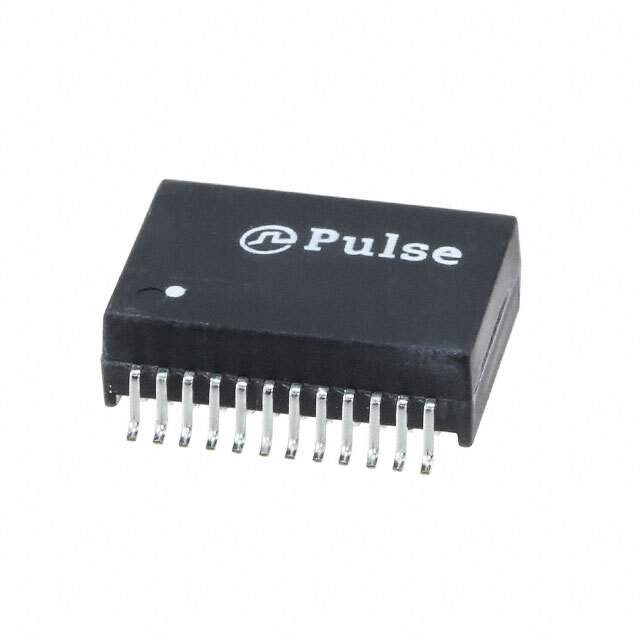

The HX6098NL is a surface mount, high isolation transformer manufactured by Pulse Electronics. It is designed for use in a variety of isolated power and data applications. This compact transformer offers excellent performance and reliability, making it suitable for demanding industrial and telecommunications environments.

Applications

• Isolated power supplies
• Isolated data interfaces (e.g., Ethernet, CAN)
• Industrial control systems
• Telecommunications equipment
• Medical devices

Features

• Surface mount package
• High isolation voltage
• Compact size
• RoHS compliant
• Operating temperature range: -40°C to +125°C

Benefits

• Provides galvanic isolation between circuits, enhancing safety and preventing ground loops.
• Reduces noise and interference in sensitive circuits.
• Facilitates compliance with safety standards.
• Enables compact and efficient power supply designs.
• Offers reliable performance in harsh environments.

Additional Details

The HX6098NL transformer features a reinforced insulation system, providing a high level of safety. The specific isolation voltage rating is typically around 4kVrms. It is commonly used in applications requiring compliance with international safety standards such as IEC 60950 and IEC 62368. The transformer's construction employs high-quality materials to ensure long-term reliability and stability. This part is often selected for its small footprint and its ability to provide robust isolation in space-constrained applications. The inductance and turns ratio are specifically designed to optimize performance in various isolated power and data transmission scenarios. It is also used in POE(Power Over Ethernet) applications.
