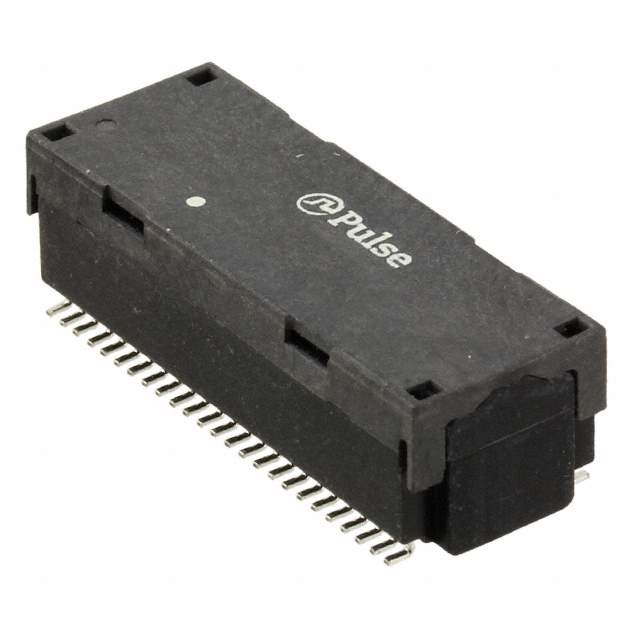

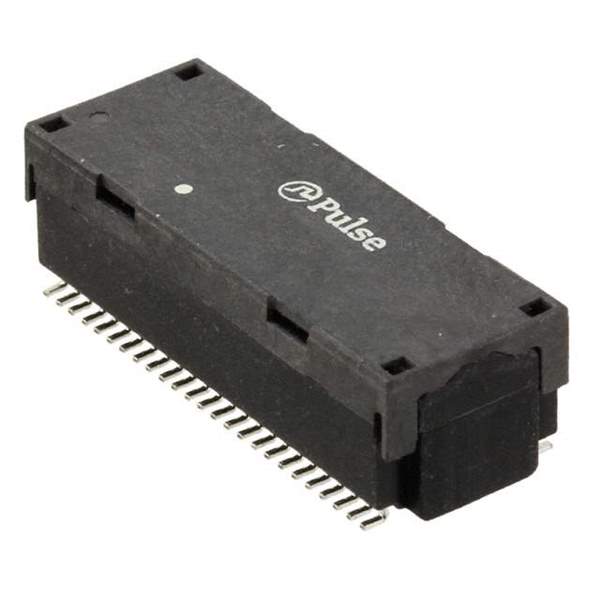

HX5020FNLT Real Image
Same model may have multiple batches, images only for reference.

HX5020FNLT

Part No HX5020FNLT
Manufacturer Pulse
Catalog Pulse Transformers
Description TRANSFORMER MODULE GIGABIT 2PORT / Telecom Transformer 1:1 0.65Ohm Prim. DCR 0.65Ohm Sec. DCR 50 Terminal Gull Wing SMD
Datasheet
HX5020FNLT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Corporation
Series *
Packaging Reel package
Mounting SMD
Dimension 1.100" L x 0.395" W (27.94mm x 10.03mm)
Height - Seated (Maximum) 0.328" (8.33mm)
Win Source Part Number 776262-HX5020FNLT
Popularity Medium
Supply and Demand Status Limited
Family Name HX5020
Introduction Date August 13, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian HX5020FNLT CAD Model

Description

The Pulse Electronics Corporation transformer, with Win Source Part Number 776262-HX5020FNLT, is a transformer from the HX5020 series.

  • Series: HX5020
  • Mounting Style: SMD
  • Packaging: Reel
  • Height: 0.328" (8.33mm)
  • Dimensions: 1.100" L x 0.395" W (27.94mm x 10.03mm)
  • Supply and Demand: Limited
  • Popularity: Low
  • EOL Date: 2031
  • ECCN: EAR99
  • Manufactured in: China
