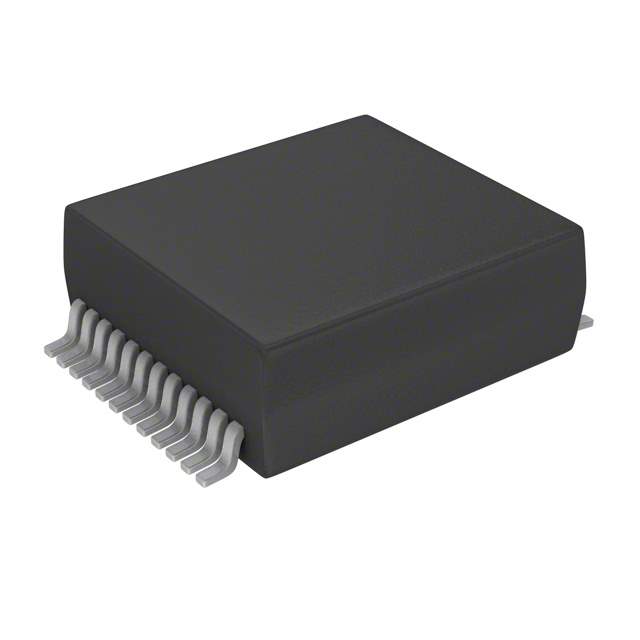

The HX5008NLT is a surface mount high isolation transformer manufactured by Pulse Electronics. It is designed for use in various isolated power supply and communication applications. This transformer provides a high level of isolation between the primary and secondary windings, ensuring safety and preventing ground loops.

Applications

• Isolated Power Supplies: Used in AC/DC and DC/DC power supplies to provide isolation between the input and output.
• Isolated Communication Interfaces: Employed in communication interfaces like Ethernet and CAN bus to isolate different segments of the network.
• Medical Equipment: Utilized in medical devices to ensure patient safety by providing isolation from mains power.
• Industrial Control Systems: Integrated into industrial control systems to isolate sensitive control circuits from high-voltage power lines.
• Gate Driver Circuits: Used to isolate gate drive signals for MOSFETs and IGBTs in power electronic applications.

Features

• High Isolation Voltage: Provides a high level of isolation between the primary and secondary windings.
• Surface Mount Package: Designed for easy surface mount assembly on printed circuit boards.
• Compact Size: Small footprint allows for use in space-constrained applications.
• Wide Operating Temperature Range: Functions reliably across a broad range of temperatures.
• RoHS Compliant: Complies with RoHS standards, ensuring environmental compliance.

Benefits

• Enhanced Safety: High isolation voltage protects users and equipment from electrical shock and damage.
• Reduced Ground Loops: Prevents ground loops, improving signal integrity and reducing noise.
• Simplified Assembly: Surface mount package simplifies board assembly and reduces manufacturing costs.
• Space Saving: Compact size allows for use in densely populated circuit boards.
• Reliable Operation: Wide operating temperature range ensures reliable performance in harsh environments.

Technical Specifications

The HX5008NLT features a turns ratio of typically 1:1, and it is designed to handle power levels up to a specified maximum. Its isolation voltage is rated at a minimum of 4000Vrms. The operating temperature range is typically -40°C to +125°C. The inductance and leakage inductance are precisely controlled to ensure optimal performance in target applications. The package is designed for automated pick-and-place assembly.

This transformer is widely used in applications requiring robust isolation and reliable performance. Its compact size and surface mount design make it an ideal choice for modern electronic devices.
