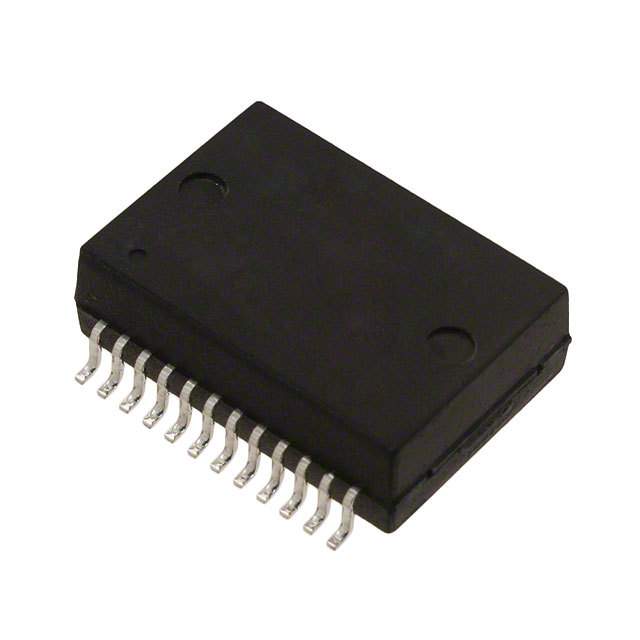

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Obsolete
Transformer Type LAN 1000 Base-T
Mounting Type Surface Mount
Size / Dimension 0.690" L x 0.480" W (17.53mm x 12.20mm)
Height - Seated (Max) 0.227" (5.76mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.06 oz (1.71 g)
Standard Package 25 pcs
Moisture Sensitivity Level (MSL) 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 149659-HX5007NL
Ultra Librarian 3D Model Ultra Librarian HX5007NL CAD Model

Description

The 149659-HX5007NL is a pulse transformer designed for LAN 1000 Base-T applications. It belongs to the Transformers - Pulse Transformers category and comes in a tube package. With a size of 0.690" L x 0.480" W (17.53mm x 12.20mm) and a height of 0.227" (5.76mm), it is suitable for integration into circuit boards. The 149659-HX5007NL has a surface mount mounting type and can operate in a temperature range of -40°C to 85°C. It weighs 0.06 oz (1.71 g) and comes in a standard package of 25 pieces. It has an ECCN of EAR99 and is unaffected by REACH regulations. The HTSUS code for this pulse transformer is 8504.31.2000. Manufactured by Pulse, the 149659-HX5007NL is an obsolete product with a moisture sensitivity level of 4 (72 hours).
