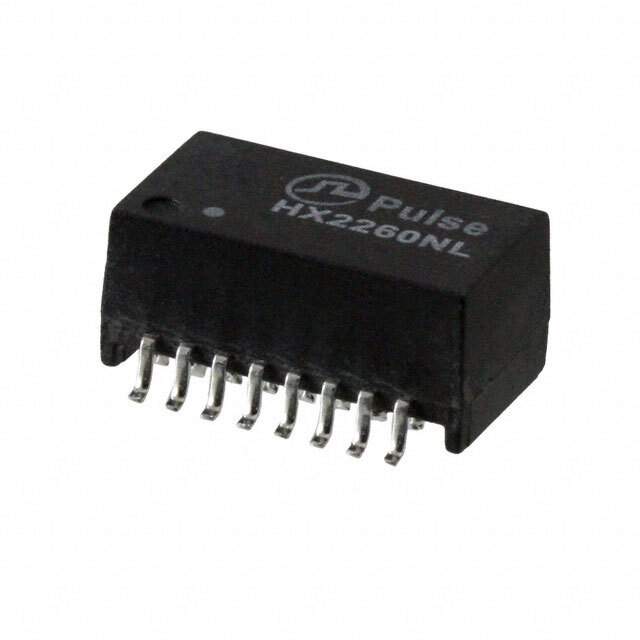

HX2260NLT Real Image
Same model may have multiple batches, images only for reference.

HX2260NLT

Part No HX2260NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MODUL 1PORT POE 1:1 10/100  /  Isolation and Data Interface (Encapsulated) Pulse Transformer 1:1 Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Series Star Magnetics™
Package Tape & Reel
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting SMD (SMT)
Dimension 0.500" L x 0.280" W (12.70mm x 7.11mm)
Height - Seated (Max) 0.245" (6.22mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.1 oz (2.85 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Other Names 1840-1071-2,HX2260NLT-ND,1840-1071-6,1840-1071-1
Standard Package 600
Win Source Part Number 1008298-HX2260NLT
Ultra Librarian 3D Model Ultra Librarian HX2260NLT CAD Model

Description

The Pulse Electronics Network HX2260NLT is an encapsulated pulse transformer suitable for isolation and data interface applications. It has a standard package of 600 and comes in a tape and reel package.

  • Product: Pulse Electronics Network HX2260NLT
  • Type: Encapsulated Pulse Transformer
  • Application: Isolation and Data Interface
  • Standard Package: 600
  • Package: Tape and Reel
  • Maximum Seated Height: 0.245" (6.22mm)
  • Weight: 0.1 oz (2.85 g)
