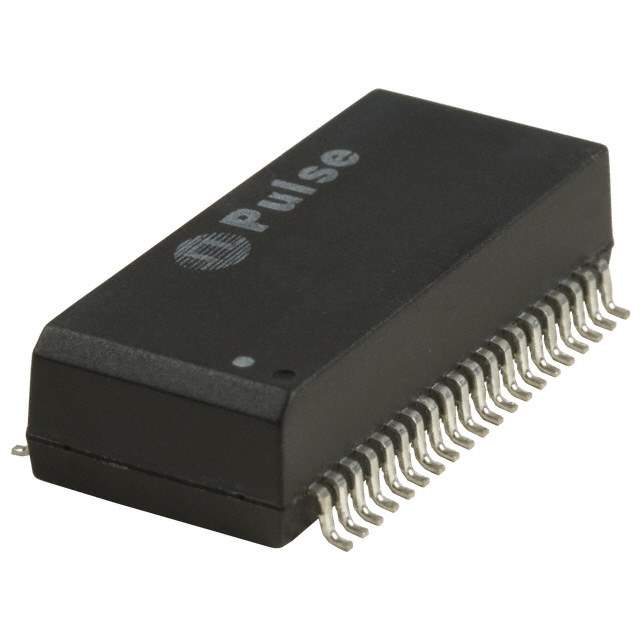

HX1234NL Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Style SMD
Parts Dimension 1.125" L x 0.480" W (28.58mm x 12.19mm)
Height - Seated (Maximum) 0.290" (7.36mm)
Temperature Range - Operating -40°C ~ 85°C
Weight 0.17 oz (4.84g)
Manufacturer Pack Quantity 15
MSL Level 4 (72 Hours)
Win Source Part Number 1182650-HX1234NL
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HX1234NL CAD Model

Description

The Pulse Electronics Network HX1234NL is a tube packaged SMD transformer that is used for isolation and data interface encapsulation.

  • Packaging: Tube
  • Mounting: SMD
  • Application: Isolation and Data Interface Encapsulation
  • Weight: 0.17 oz (4.84g)
  • Operating Temperature: -40°C to 85°C
  • Manufacturer Pack Quantity: 15
  • MSL Level: 4 (72 hours)
  • Dimensions: 1.125" L x 0.480" W (28.58mm x 12.19mm)
  • Supply and Demand: Limited
