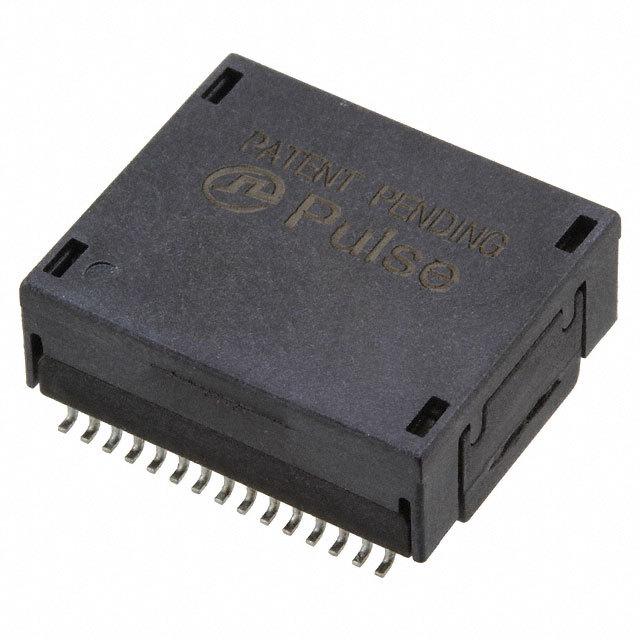

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type LAN 10G Base-T
Mounting Type Surface Mount
Size / Dimension 0.698" L x 0.585" W (17.73mm x 14.86mm)
Height - Seated (Max) 0.290" (7.37mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 300 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 140262-H7137FNLT
Ultra Librarian 3D Model Ultra Librarian H7137FNLT CAD Model

Description

The 140262-H7137FNLT is a pulse transformer designed for use in transformers in pulse applications. It is part of the Transformers - Pulse Transformers category and is suitable for surface mount mounting. The transformer type is LAN 10G Base-T, and it has a size of 0.698" L x 0.585" W (17.73mm x 14.86mm). The height of the transformer when seated is 0.290" (7.37mm). The standard package includes 300 pieces. It operates in a temperature range of 0°C to 70°C. The ECCN is EAR99, and it is unaffected by REACH regulations. The transformer is manufactured by Pulse and is currently active in the market.
