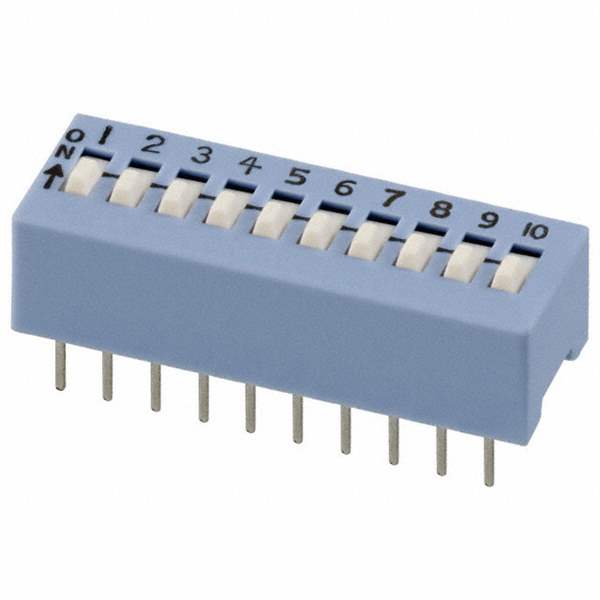

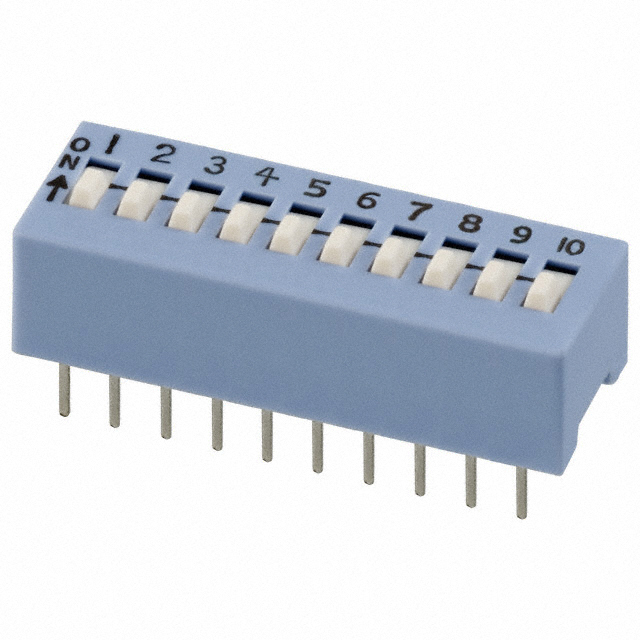

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category SwitchesDIP Switches
Manufacturer CTS Electrocomponents
Series 206
Packaging Tube
Part Status Active
Circuit SPST
Number of Positions 10
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.334" (8.48mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Operating Temperature -55°C ~ 85°C
Body Material Plastic
Length 1.086" (27.58mm)
Electrical Life 10,000 Cycles
Ultra Librarian 3D Model Ultra Librarian 206-10ST CAD Model
