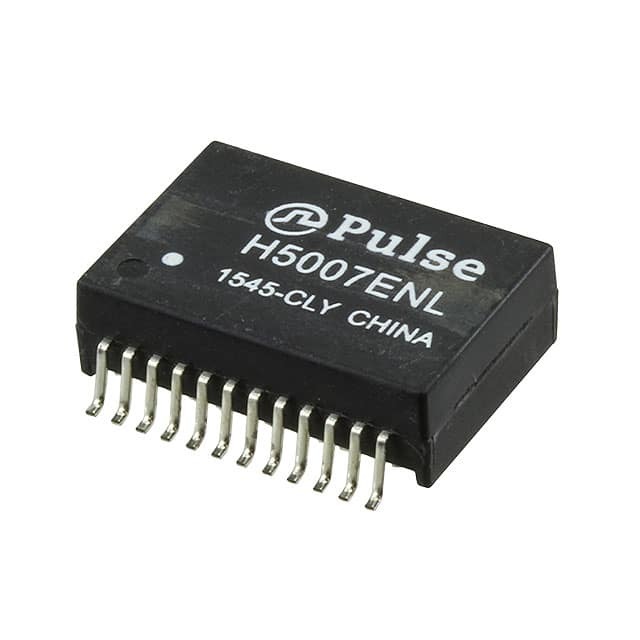

H5007ENL
Same model may have multiple batches, images only for reference.

H5007ENL

Part No H5007ENL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1CT:1CT Transmitter, 1CT:1CT Receiver Surface Mount
Datasheet
H5007ENL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.689" L x 0.480" W (17.50mm x 12.20mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 919948-H5007ENL
Ultra Librarian 3D Model Ultra Librarian H5007ENL CAD Model

Description

The 919948-H5007ENL is a pulse transformer designed for LAN 10/100/1000 Base-T applications.

  • Application: LAN 10/100/1000 Base-T
  • Size: 0.689" L x 0.480" W (17.50mm x 12.20mm)
  • Height: 0.225" (5.72mm)
  • Mounting: surface mount installation
  • Inductance: 350µH
  • Operating Temperature: 0°C to 70°C
  • Package: tube
  • Package Quantity: 25 pcs
  • Status: currently active
