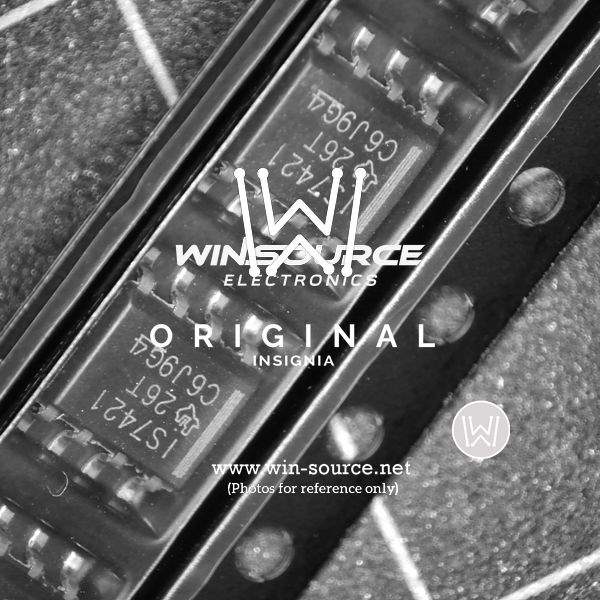

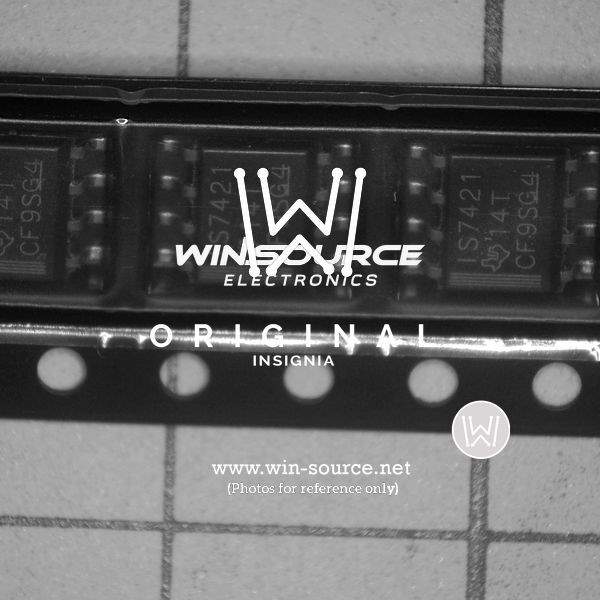

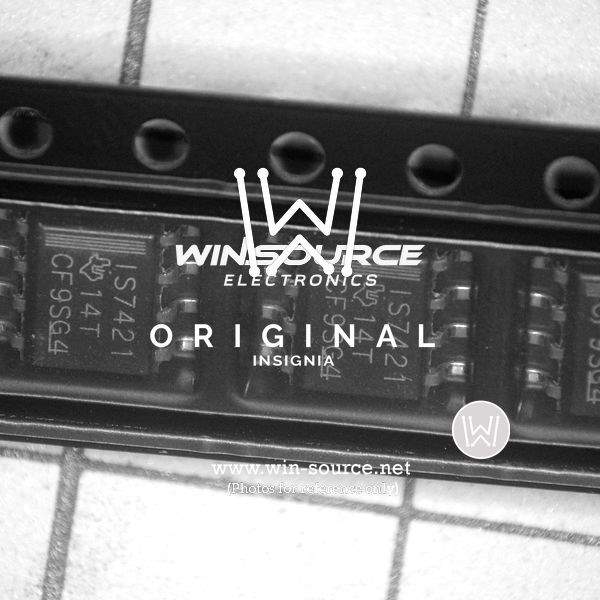

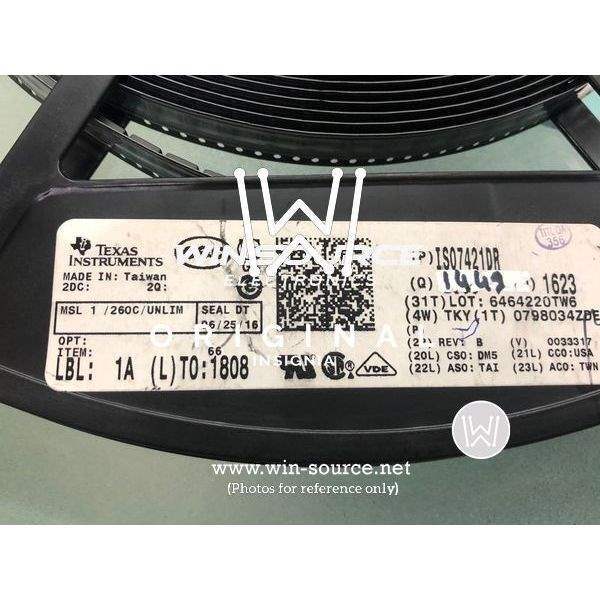

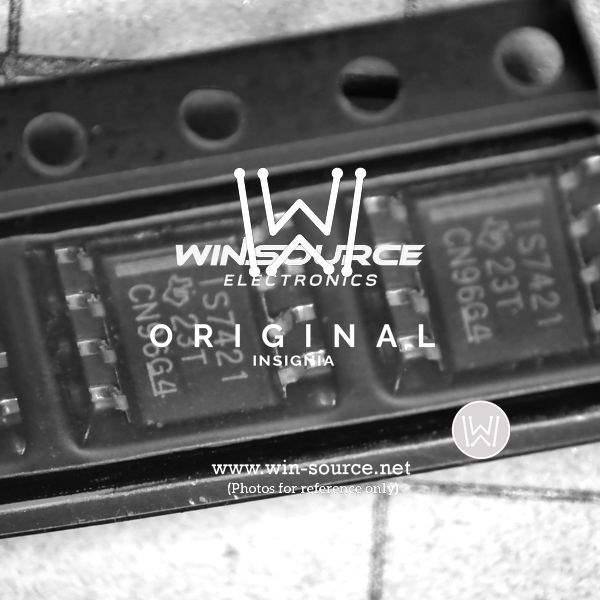

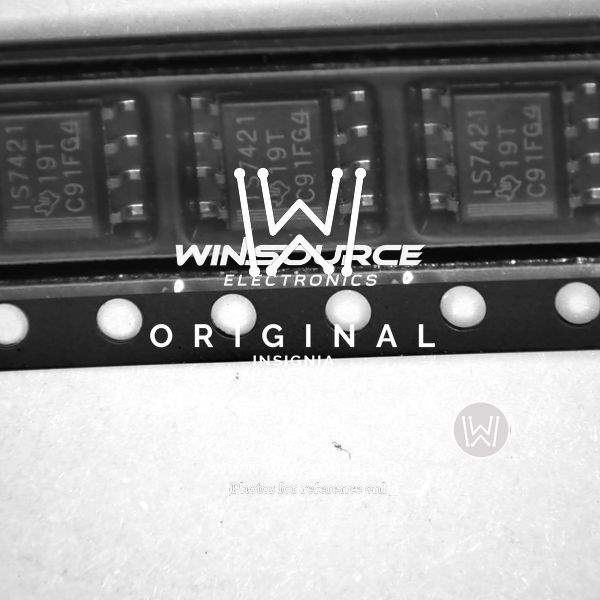

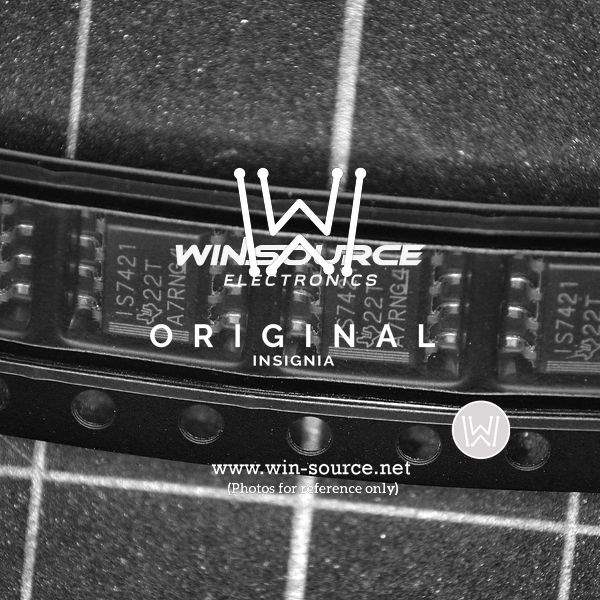

ISO7421DR Texas Instruments ISO7421DR Real Image ISO7421DR label picture ISO7421DR real image586 ISO7421DR real image587 ISO7421DR Real Image1 ISO7421DR Real Image2 ISO7421DR Real Image3 ISO7421DR Real Image4
Same model may have multiple batches, images only for reference.
ISO7421DR Texas Instruments ISO7421DR Real Image ISO7421DR label picture ISO7421DR real image586 ISO7421DR real image587 ISO7421DR Real Image1 ISO7421DR Real Image2 ISO7421DR Real Image3 ISO7421DR Real Image4
ISO7421DR Texas Instruments ISO7421DR Real Image ISO7421DR label picture ISO7421DR real image586 ISO7421DR real image587 ISO7421DR Real Image1 ISO7421DR Real Image2 ISO7421DR Real Image3 ISO7421DR Real Image4
Same model may have multiple batches, images only for reference.

ISO7421DR

Part No ISO7421DR
Manufacturer Texas Instruments
Catalog Digital Isolators
Description Digital Isolator Logic 2-CH 1Mbps 8-Pin SOIC T/R / DGTL ISO 2.5KV GEN PURP 8SOIC
Datasheet
ISO7421DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Technology Capacitive Coupling
Type General Purpose
Isolated Power No
Number of Channels 2
Inputs - Side 1/Side 2 1/1
Channel Type Unidirectional
Isolation Voltage 2500Vrms
Common Mode Transient Immunity (Min) 25kV/μs
Data Rate 1Mbps
Propagation Delay tpLH / tpHL (Max) 14ns, 14ns
Pulse Width Distortion (Max) 3.7ns
Rise and Fall Time 1ns, 1ns
Supply Voltage - Operating 3.15 V to 3.45 V, 4.75 V to 5.25 V
Temperature Range - Operating -40°C to 105°C
Case / Package 8-SOIC
Win Source Part Number 002079-ISO7421DR
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name ISO7421
Introduction Date July 01, 2009
ECCN EAR99
Country of Origin Taiwan
Halogen Free Compliant
Estimated EOL Date 2031
Ultra Librarian 3D Model Ultra Librarian ISO7421DR CAD Model

Description

The ISO7421DR is a high-performance, dual-channel digital isolator product from Texas Instruments, a renowned global semiconductor design and manufacturing company.

  • Channels: Two communication channels
  • Supply Range: 3.0V to 5.5V
  • Data Rate: Up to 1 Mbps
  • Transient Immunity: Up to 50 kV/µs
  • Package: 8-pin SOIC package
  • Operating Temperature Range: -40°C to +125°C
