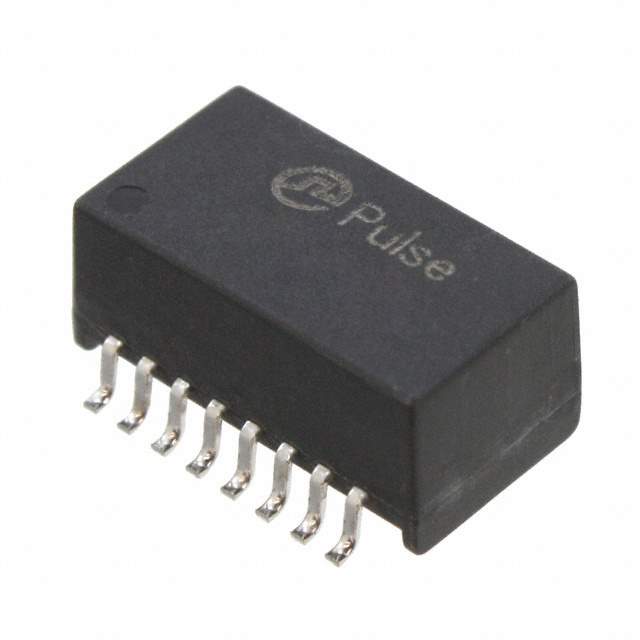

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Transformers
Manufacturer Pulse Electronics Network
Packaging Reel
Transformer Type LAN 10G Base-T
Inductance 350μH
Mounting Style SMD
Parts Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Maximum) 0.236" (5.99mm)
Temperature Range - Operating 0°C ~ 70°C
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1178247-H2019FNLT
Manufacturer Homepage www.pulseeng.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian H2019FNLT CAD Model

Description

The Pulse Electronics Network transformer, with Win Source Part Number 1178247-H2019FNLT, is a LAN 10G Base-T type transformer with an inductance of 350μH. Bold the product name (e.g., BAV99S,135 → 1178247-H2019FNLT) and manufacturer (e.g., Nexperia USA Inc. → Pulse Electronics Network).

  • Type: LAN 10G Base-T
  • Inductance: 350μH
  • Mounting Style: SMD
  • Temperature Range: 0°C to 70°C
  • Height: 0.236" (5.99mm)
  • Supply and Demand: Balanced
  • Parts Dimension: 0.500" L x 0.358" W (12.70mm x 9.09mm)
