Same model may have multiple batches, images only for reference.

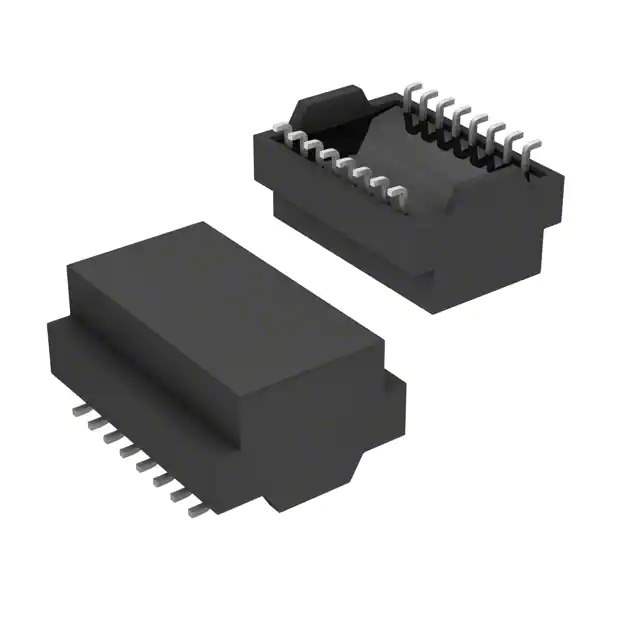

H1260FNL Real Image
Same model may have multiple batches, images only for reference.

H1260FNL

Part No H1260FNL
Manufacturer Pulse
Catalog Pulse Transformers
Description PULSE XFMR 1CT:1CT TX 1CT:1CT RX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Bulk
Product Status Active
Transformer Type LAN 10G Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 1.110" L x 0.608" W (28.19mm x 15.44mm)
Height - Seated (Max) 0.225" (5.72mm)
Temperature Range - Operating 0°C ~ 70°C
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 919944-H1260FNL
Ultra Librarian 3D Model Ultra Librarian H1260FNL CAD Model

Description

The 919944-H1260FNL is a pulse transformer designed for use in transformers.

  • Application: transformers
  • Size: 1.110" L x 0.608" W (28.19mm x 15.44mm)
  • Height: 0.225" (5.72mm)
  • Type: LAN 10G Base-T
  • Inductance: 350μH
  • Operating Temperature: 0°C to 70°C
  • Mounting: surface mountable
  • Package: bulk
  • Status: active product
  • REACH: unaffected
  • ECCN: EAR99
