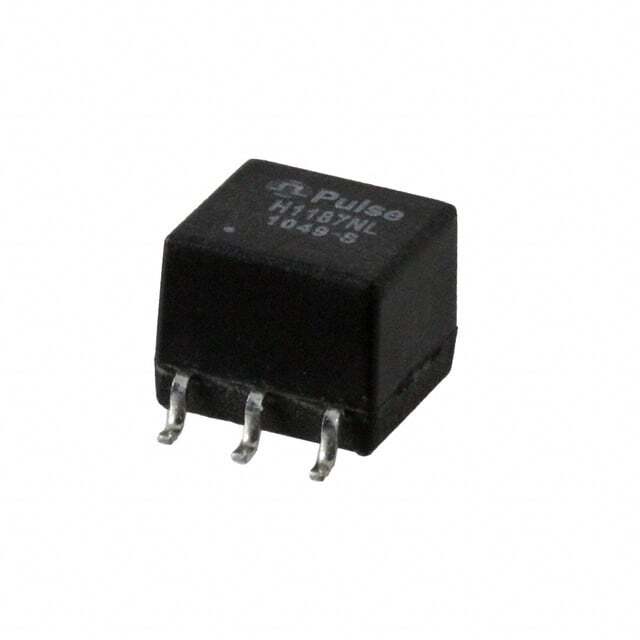

H1187NLT
Same model may have multiple batches, images only for reference.

H1187NLT

Part No H1187NLT
Manufacturer Pulse
Catalog Pulse Transformers
Description XFRMR MAGNT MOD 1PORT POE 10/100
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr Pulse
Package Tape & Reel
Product Status Active
Transformer Type Isolation and Data Interface (Encapsulated)
Mounting Type Surface Mount
Size / Dimension 0.300" L x 0.275" W (7.62mm x 7.00mm)
Height - Seated (Max) 0.260" (6.60mm)
Temperature Range - Operating 0°C ~ 70°C
Weight 0.02 oz (0.57 g)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 919938-H1187NLT
Ultra Librarian 3D Model Ultra Librarian H1187NLT CAD Model

Description

The 919938-H1187NLT is a pulse transformer designed for use in electronic devices.

  • Category: Transformers - Pulse Transformers
  • Application: isolation and data interface
  • Encapsulated: Yes
  • Mounting Type: surface mount
  • Size: 0.300" L x 0.275" W (7.62mm x 7.00mm)
  • Height: 0.260" (6.60mm)
  • Operating Temperature: 0°C to 70°C
  • Status: active product
  • Standard Package: 500 pieces
  • Weight: 0.02 oz (0.57 g)
  • ECCN: EAR99
  • REACH Status: unaffected
  • HTSUS code: 8504.31.2000
  • Manufacturer: Pulse
