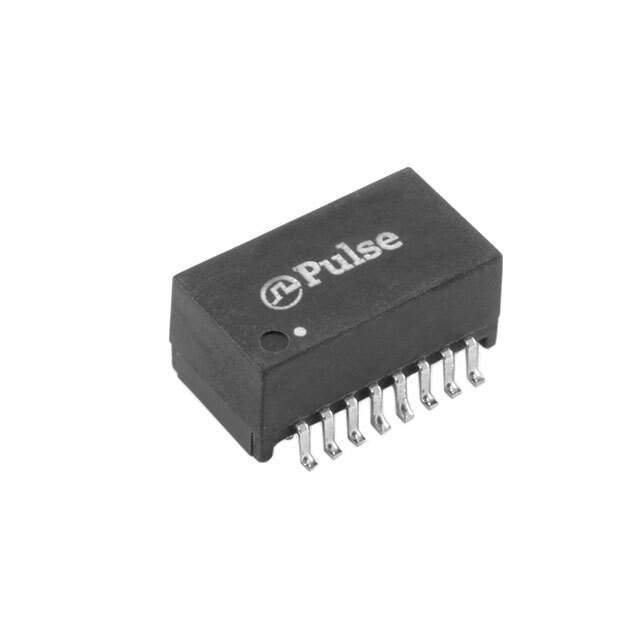

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Transformers>Pulse Transformers
Mfr Pulse Electronics Network
Package Tube
Transformer Type Isolation and Data Interface (Encapsulated)
Inductance 20µH, 100µH
Mounting SMD (SMT)
Dimension 0.500" L x 0.358" W (12.70mm x 9.09mm)
Height - Seated (Max) 0.241" (6.12mm)
Weight 0.03 oz (0.85 g)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Standard Package 40
Win Source Part Number 1190605-E2467NL
Ultra Librarian 3D Model Ultra Librarian E2467NL CAD Model

Description

The Pulse Electronics Network 1190605-E2467NL is an encapsulated type isolation and data interface pulse transformer. It has an inductance of 20µH and 100µH. It is suitable for use in electronic devices that require high-frequency signal isolation and data transmission.
