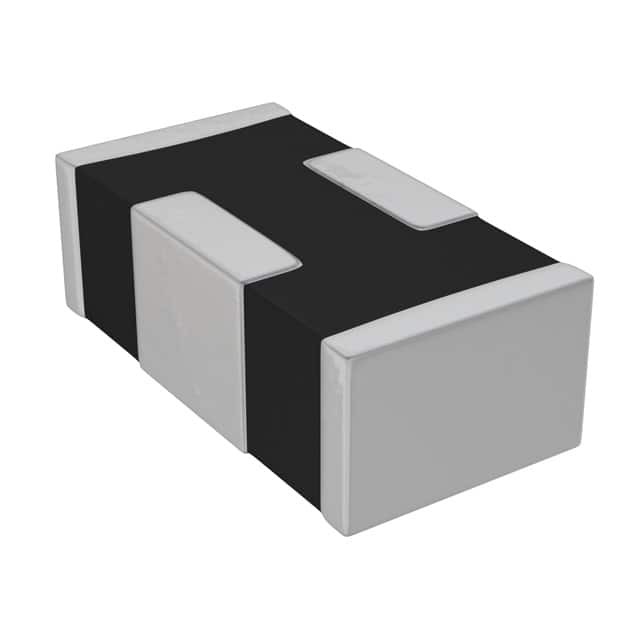

Same model may have multiple batches, images only for reference.

CX1206MKX7R7BB394

Get a Quote

Part No	CX1206MKX7R7BB394
Manufacturer	Pulse
Catalog	Ceramic Capacitors
Description	CAP CER 0.39UF 16V X7R 1206 / 0.39 μF ±20% 16V Ceramic Capacitor X7R 1206 (3216 Metric)
Datasheet	CX1206MKX7R7BB394 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Ceramic Capacitors
Mfr	Pulse
Series	X2Y®
Package	Tape & Reel
Product Status	Active
Capacitance	0.39 µF
Tolerance	±20%
Voltage - Rated	16V
Temperature Coefficient	X7R
Temperature Range - Operating	-55°C ~ 125°C
Features	Low ESL (X2Y)
Applications	Bypass, Decoupling
Mounting Type	Surface Mount, MLCC
Package / Case	1206 (3216 Metric)
Size / Dimension	0.126" L x 0.065" W (3.20mm x 1.65mm)
Thickness (Max)	0.055" (1.40mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.24.0020
Win Source Part Number	867488-CX1206MKX7R7BB394
Ultra Librarian 3D Model	Ultra Librarian CX1206MKX7R7BB394 CAD Model

Description

The 867488-CX1206MKX7R7BB394 is a ceramic capacitor designed for use in electronic circuits manufactured by PulseLarsen Antennas.

Size: 0.126" L x 0.065" W (3.20mm x 1.65mm)
Capacitance: 0.39µF
Tolerance: ±20%
Voltage: 16V
Temperature Coefficient: X7R
Thickness: 0.055" (1.40mm)
Package: Tape & reel
Standard Package: 3,000 pcs
Application: Bypass and decoupling applications
Mounting: Surface mountable
Package/Case Size: 1206 (3216 Metric)
Operating Temperature Range: -55°C to 125°C
ECCN: EAR99
REACH: Unaffected
MSL Level: 1 (Unlimited)
