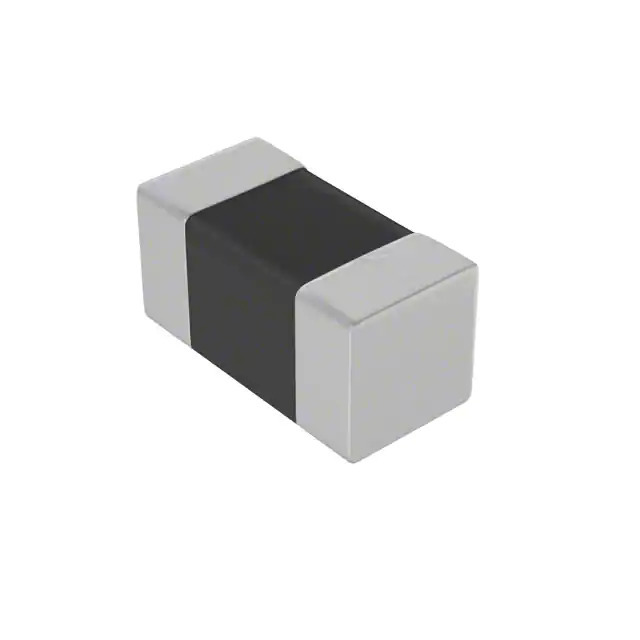

Same model may have multiple batches, images only for reference.
BPF1005LM03R2400A Pulse
Same model may have multiple batches, images only for reference.

BPF1005LM03R2400A

Part No BPF1005LM03R2400A
Manufacturer Pulse
Catalog RF Filters
Description FILTER BAND PASS 2.4G WLAN
Datasheet
BPF1005LM03R2400A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - RF Filters
Mfr Pulse Electronics
Series 1005
Package Tape & Reel
Product Status Active
Frequency 2.45GHz Center
Bandwidth 100MHz
Filter Type Band Pass
Ripple -
Insertion Loss 1.5dB
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric), 4 PC Pad
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height (Max) 0.018" (0.45mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1373353-BPF1005LM03R2400A
Ultra Librarian 3D Model Ultra Librarian BPF1005LM03R2400A CAD Model

Description

The 1373353-BPF1005LM03R2400A is a bandpass RF filter manufactured by Pulse Electronics. It is part of the 1005 series and has a package size of 0402 (1005 Metric), with 4 PC pad for surface mount.

  • Filter Type: Bandpass
  • Series: 1005
  • Frequency: 2.45GHz center
  • Insertion Loss: 1.5dB
  • Bandwidth: 100MHz
  • Mounting Type: Surface Mount
  • Height: 0.018" (0.45mm)
  • REACH: Unaffected
  • ECCN: EAR99
