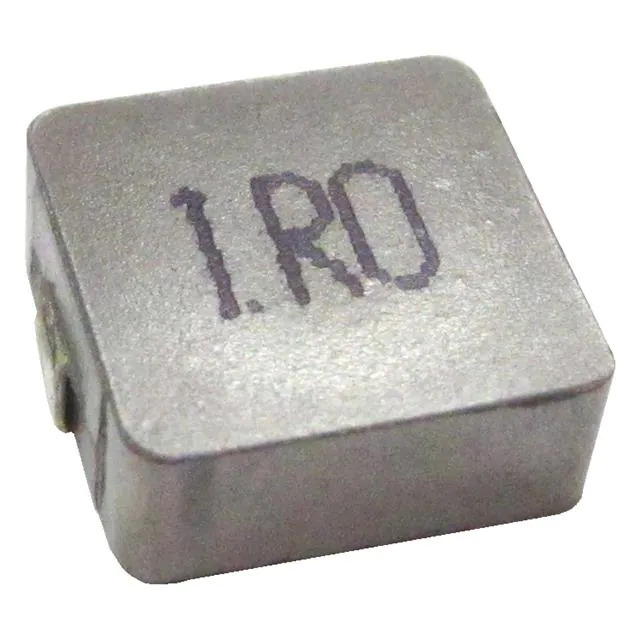

Same model may have multiple batches, images only for reference.

BMRA00060630220MA1

Name: BMRA00060630220MA1
Brand: Pulse
SKU: 1370349
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BMRA00060630220MA1
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 22UH 3A 145 MOHM SMD
Datasheet	BMRA00060630220MA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse Electronics
Series	BMRA
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	-
Inductance	22 µH
Tolerance	±20%
Current Rating (Amps)	3 A
Current - Saturation (Isat)	3.2A
Shielding	Shielded
DC Resistance (DCR)	145mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-55°C ~ 125°C
Inductance Frequency - Test	100 kHz
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.287" L x 0.260" W (7.30mm x 6.60mm)
Height - Seated (Max)	0.118" (3.00mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	1370349-BMRA00060630220MA1
Ultra Librarian 3D Model	Ultra Librarian BMRA00060630220MA1 CAD Model

Alternative Products

Description

The 1370349-BMRA00060630220MA1 is a molded fixed inductor from Pulse Electronics.

Series: BMRA
Package: Tape & Reel
Size: 0.287" L x 0.260" W (7.30mm x 6.60mm)
Height: 0.118" (3.00mm)
Inductance: 22 µH
Current Rating: 3 A
Mounting Type: Surface Mount
Shielding: Shielded
DC Resistance (DCR): 145mOhm max
Tolerance: ±20%
Temperature Range: -55°C to 125°C
REACH: Unaffected
ECCN: EAR99
