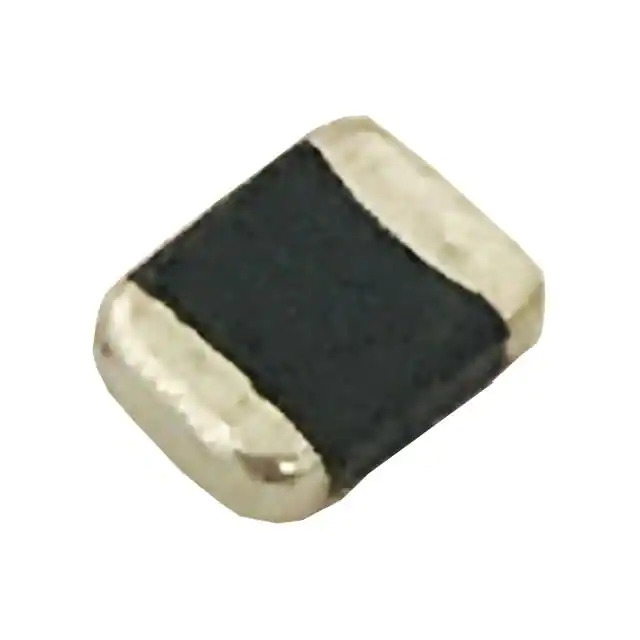

Same model may have multiple batches, images only for reference.
BDHE002016101R0MQ1 Pulse
Same model may have multiple batches, images only for reference.

BDHE002016101R0MQ1

Part No BDHE002016101R0MQ1
Manufacturer Pulse
Catalog Fixed Inductors
Description FIXED IND 1UH 3.1A 65 MOHM SMD
Datasheet
BDHE002016101R0MQ1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Pulse Electronics
Series BDHE
Package Tape & Reel
Product Status Active
Type Molded
Material - Core -
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 3.1 A
Current - Saturation (Isat) 3.6A
Shielding Unshielded
DC Resistance (DCR) 65mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 2 MHz
Features -
Mounting Type Surface Mount
Package / Case 0806 (2016 Metric)
Supplier Device Package 0806
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.039" (1.00mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1370342-BDHE002016101R0MQ1
Ultra Librarian 3D Model Ultra Librarian BDHE002016101R0MQ1 CAD Model

Description

The 1370342-BDHE002016101R0MQ1 is a molded fixed inductor manufactured by Pulse Electronics.

  • Series: BDHE
  • Package: 0806 (2016 Metric)
  • Temperature Range: -40°C to 125°C
  • Tolerance: ±20%
  • Inductance: 1µH
  • DCR: 65mOhm maximum
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Seated Height: 0.039" (1.00mm)
  • Mounting Type: Surface Mount
  • Shielding: Unshielded
  • Current Rating: 3.1A
  • Saturation Current: 3.6A
  • REACH: Unaffected
  • ECCN: EAR99
