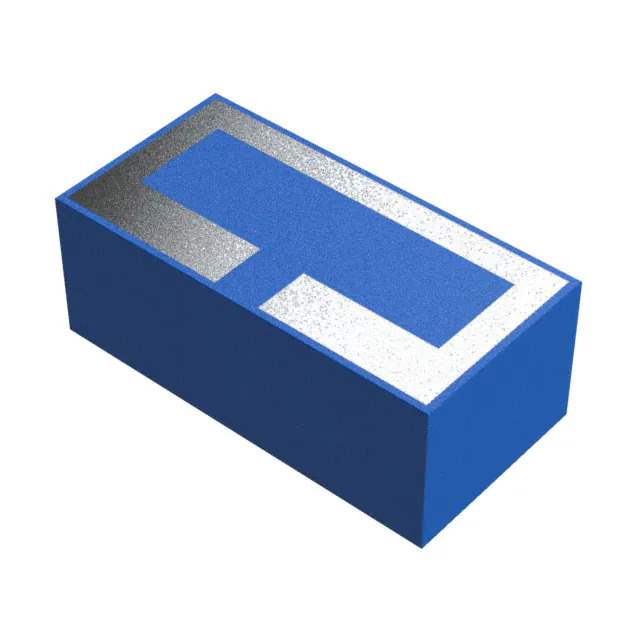

ANT3216LL11R2400A Real Image
Same model may have multiple batches, images only for reference.

ANT3216LL11R2400A

Part No ANT3216LL11R2400A
Manufacturer Pulse
Catalog RF Antennas
Description RF ANT 2.45GHZ CER PATCH SLDR / 2.45GHz Bluetooth, ISM, Wi-Fi, Zigbee? Ceramic Patch RF Antenna 2.4GHz ~ 2.5GHz 3.68dBi Solder Surface Mount
Datasheet
ANT3216LL11R2400A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Series 3216
Package Tape & Reel
Product Status Active
RF Family/Standard 802.15.4, Bluetooth, General ISM, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.45GHz
Frequency Range 2.4GHz ~ 2.5GHz
Antenna Type Ceramic Patch
Number of Bands 1
Return Loss 6.5dB
Gain 3.68dBi
Power - Max 1 W
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.047" (1.20mm)
Applications Bluetooth, ISM, Wi-Fi, Zigbee™
Base Product Number ANT3216
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 861003-ANT3216LL11R2400A
Ultra Librarian 3D Model Ultra Librarian ANT3216LL11R2400A CAD Model

Description

The 861003-ANT3216LL11R2400A is an RF antenna designed for various wireless applications such as Bluetooth, ISM, Wi-Fi, and Zigbee™.

  • Manufacturer: Pulse
  • Product: 861003-ANT3216LL11R2400A
  • Application: Bluetooth, ISM, Wi-Fi, and Zigbee™
  • Frequency Range: 2.4GHz to 2.5GHz
  • Frequency Group: UHF (2GHz to 3GHz)
  • Type: Ceramic Patch
  • Gain: 3.68dBi
  • Power Handling: 1 W
  • Return Loss: 6.5dB
  • Termination: Solder
  • Package: Tape & Reel
  • Height: 0.047" (1.20mm)
  • Mounting: Surface Mount
  • Series: 3216
  • Status: Active
  • Standard Package: 3,000 pcs
