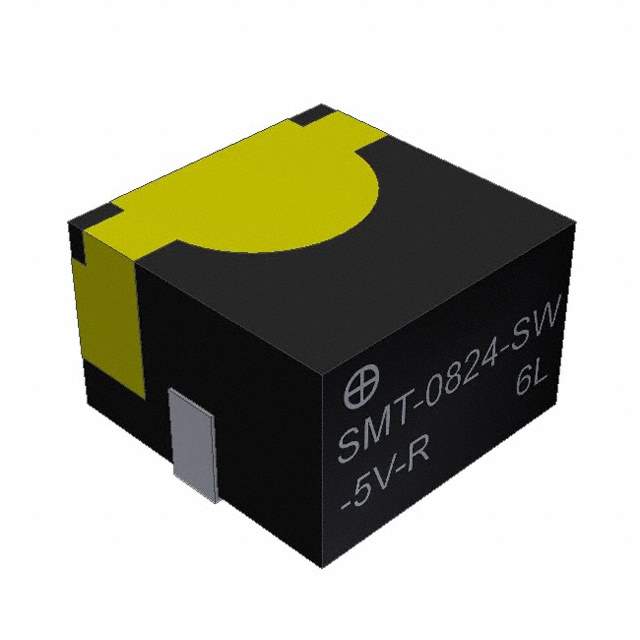

SMT-0824-SW-5V-R Real Image
Same model may have multiple batches, images only for reference.

SMT-0824-SW-5V-R

Part No SMT-0824-SW-5V-R
Manufacturer PUI Audio, Inc.
Catalog Audio Accessories
Description BUZZER MAGNETIC 5V 8.5X8.5MM SMD / Buzzers Transducer, Externally Driven Electromechanical/Magnetic 5 V 80mA 2.4kHz 80dB @ 5V, 10cm Surface Mount Solder Pads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Alarms, Buzzers, and Sirens
Mfr PUI Audio, Inc.
Series SMT
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 5 V
Voltage Range 4 ~ 6V
Frequency 2.4kHz
Technology Electromechanical/Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 80dB @ 5V, 10cm
Current - Supply 80mA
Port Location Side
Temperature Range - Operating -40°C ~ 85°C
Ratings Washable
Mounting SMD (SMT)
Termination Solder Pads
Dimension 0.335" L x 0.335" W (8.50mm x 8.50mm)
Height - Seated (Max) 0.236" (6.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8531.80.9041
Other Names SMT0824SW5VR,668-1338-2,668-1338-1,SMT-0824-SW-5V-R-ND,668-1338-6
Standard Package 600
Win Source Part Number 1127517-SMT-0824-SW-5V-R
Ultra Librarian 3D Model Ultra Librarian SMT-0824-SW-5V-R CAD Model

Description

The PUI Audio SMT series alarm, buzzer, and siren component is an electromechanical/magnetic technology product with a rated voltage of 5V and a rated frequency of 2.4kHz.

  • Rated Voltage: 5V
  • Rated Frequency: 2.4kHz
  • Sound Pressure Level: 80dB @ 5V, 10cm
  • Washable: Yes
  • Signal Input Type: Zero-Peak
  • Operating Mode: Single Tone
  • Mounting: SMD
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.335" L x 0.335" W (8.50mm x 8.50mm)
  • Port Location: Side
  • Packaging: Tape and Reel
  • Standard Package: 600
  • Manufacturer: PUI Audio
