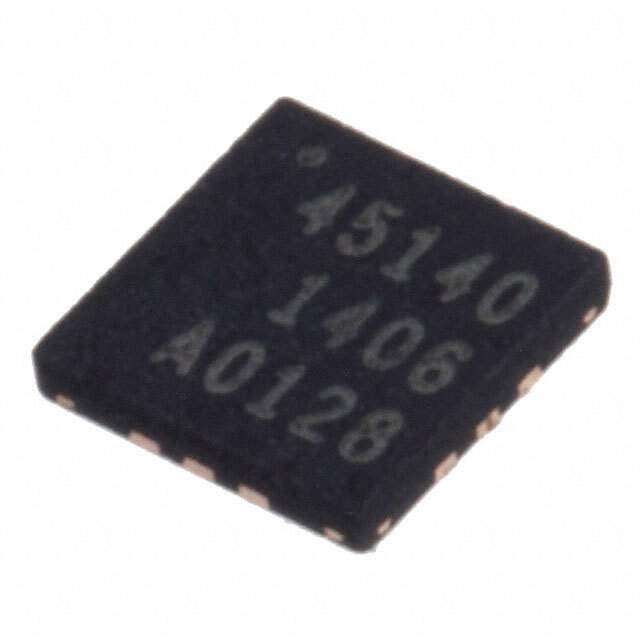

The PE45140A-X is a high-performance UltraCMOS® SP4T RF switch designed by pSemi (Peregrine Semiconductor). It offers low insertion loss, high isolation, and excellent linearity, making it suitable for a wide range of wireless communication applications. This switch provides reliable signal routing and is ideal for applications requiring high performance and compact size.

Applications

• Cellular base stations: Used for antenna switching and signal routing in base station transceivers.
• Wireless infrastructure: Employed in repeaters, distributed antenna systems (DAS), and small cells.
• Test and measurement equipment: Integrated into signal generators, spectrum analyzers, and vector network analyzers.
• Satellite communication systems: Utilized in LNBs and satellite modems.
• Automotive radar systems: Used for signal routing in advanced driver-assistance systems (ADAS).

Features

• Configuration: SP4T (Single-Pole, Four-Throw)
• Frequency Range: DC to 8 GHz
• Low Insertion Loss: Typically 0.4 dB at 3 GHz
• High Isolation: Typically 30 dB at 3 GHz
• High Linearity: IIP3 > 65 dBm
• Fast Switching Speed: Typically 500 ns
• Supply Voltage: 2.7V to 5.5V
• Control Interface: CMOS-compatible control inputs
• Package: Small QFN package

Benefits

• Improved System Performance: Low insertion loss and high isolation minimize signal degradation and improve overall system performance.
• Flexible Signal Routing: SP4T configuration allows for versatile signal routing options.
• High Linearity: Excellent linearity performance reduces signal distortion and enhances signal quality.
• Easy Integration: CMOS-compatible control inputs simplify integration into existing systems.
• Compact Size: Small QFN package minimizes board space requirements.

Additional Details

The PE45140A-X is designed using pSemi's UltraCMOS® technology, which provides excellent RF performance and reliability. The switch operates from a single supply voltage and features CMOS-compatible control inputs for easy integration. Detailed specifications, including switching characteristics and ESD performance, are available in the product datasheet from pSemi.
