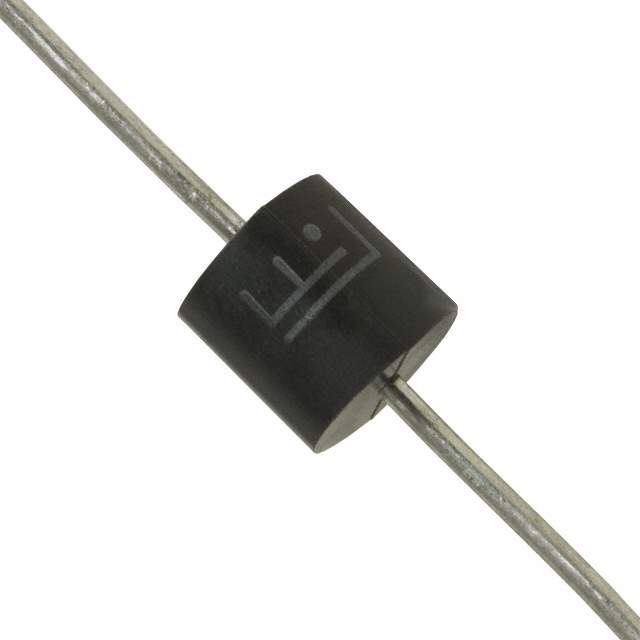

The 5KP24A-LF is a high-power transient voltage suppressor (TVS) diode manufactured by Protek Devices. It's designed to protect sensitive electronic equipment from voltage transients induced by lightning, inductive load switching, and electrostatic discharge (ESD). This device is part of the 5KP series, known for its robust surge handling capability and fast response time.

Applications:

• Power supplies: Protecting sensitive components from voltage surges.
• Industrial equipment: Safeguarding control systems and machinery from transient voltages.
• Telecommunications equipment: Protecting communication lines from lightning strikes and other surge events.
• Automotive electronics: Protecting vehicle electronic systems from voltage transients.
• Outdoor electronics: Ensuring the reliability of equipment exposed to harsh environments.

Features:

• High surge capability: Withstands high surge currents without degradation.
• Fast response time: Clamps transient voltages quickly, protecting sensitive components.
• Low clamping voltage: Limits the voltage across protected components to a safe level.
• Unidirectional: Provides protection against positive voltage transients.
• Lead-free (LF) package: Compliant with environmental regulations.

Benefits:

• Enhanced equipment reliability: Protects sensitive electronics from damage due to voltage transients.
• Reduced downtime: Minimizes equipment failures caused by surge events.
• Improved system performance: Ensures stable operation of electronic systems in harsh environments.
• Cost-effective protection: Provides a reliable and affordable solution for surge protection.
• Compliance with safety standards: Meets industry safety requirements for transient voltage protection.

Additional Details:

The 5KP24A-LF has a standoff voltage of 24V, meaning it doesn't conduct under normal operating conditions until the voltage exceeds this level. Its peak pulse power dissipation is 5000W. The clamping voltage at peak pulse current is typically around 38.9V. It is housed in a DO-204AR (axial leaded) package. It is crucial to consider the specific application requirements when selecting a TVS diode, including the expected surge levels, operating voltage, and environmental conditions.

This TVS diode is commonly used in conjunction with other protection components, such as fuses and metal oxide varistors (MOVs), to provide a comprehensive surge protection solution.
